Rotary, Evaporators

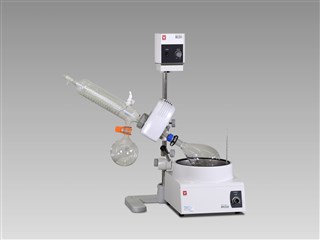

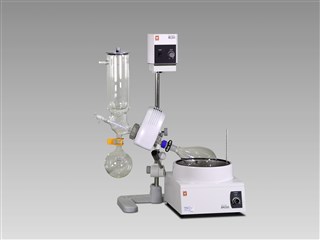

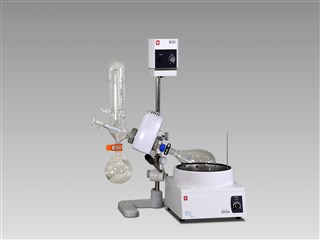

Rotary, Evaporators(RE201)

Item Code：255335

Model：RE201

Power Source：AC115V / 220VVSingle phrase

Origin：Japan

Product Summary

Manual lift with analog control

Features

Economical

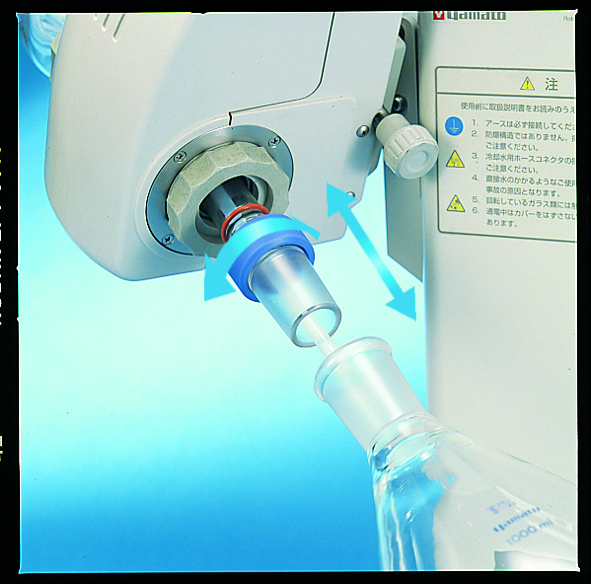

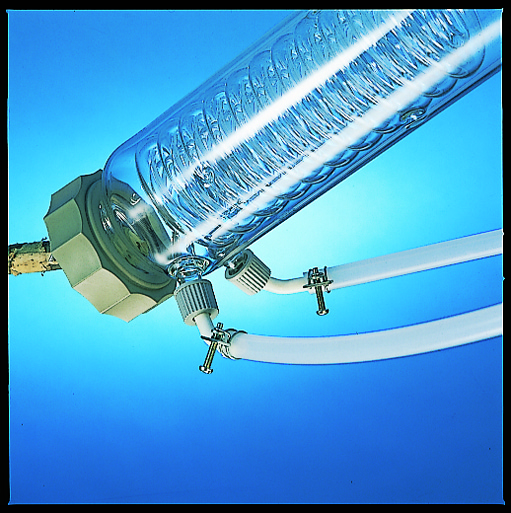

Improved operability with variable type rotary joint, distillation flask pull-out structure, Hose joint, large capacity water bath etc.

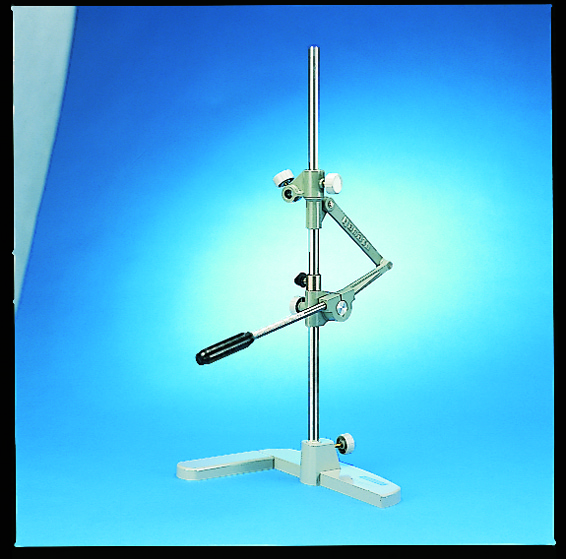

Arm jack permits setting flexibility

Specifications

Item Code

255335

Model

RE201

Motor

Induction motor, 25W

Rotational number control range

20〜180rpm

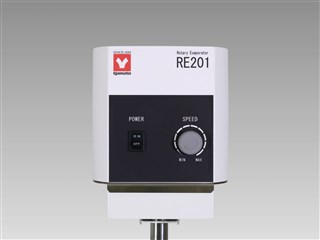

Speed setting

Volume (digital display)

Mechanism

Movable rotary joint, distillation flask removal mechanism

Ambient temperature range

5°C to 35°C

External dimensions（W×D×H mm）

420×290×837mm

Remarks(dimensions)

Glass set is not attached, only the dimensions of the main body.

Power Source

AC115V / 220VVSingle phrase

Weight

11kg

Remarks(weight)

Excluding glass · water bath / oil bath

Catalog

Optional Items

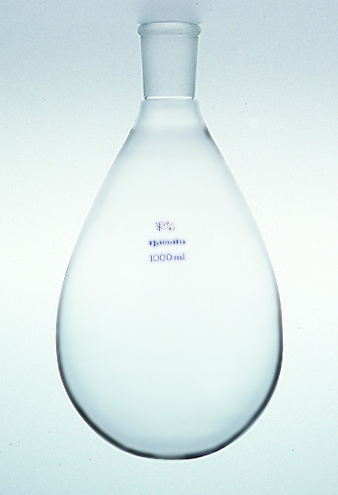

Coating distillation flask 1L ORG58(ORG58)

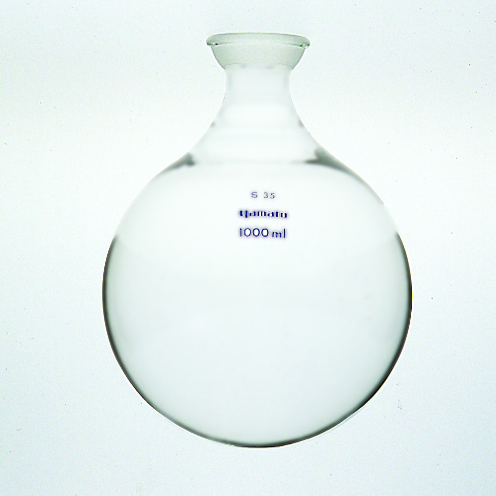

Coating receiving flask 1L ORG56(ORG56)

Cooling hose,(00)

Vacuum hose, 　6mm I.D. x 15mm O.D. x 5m (1pc)

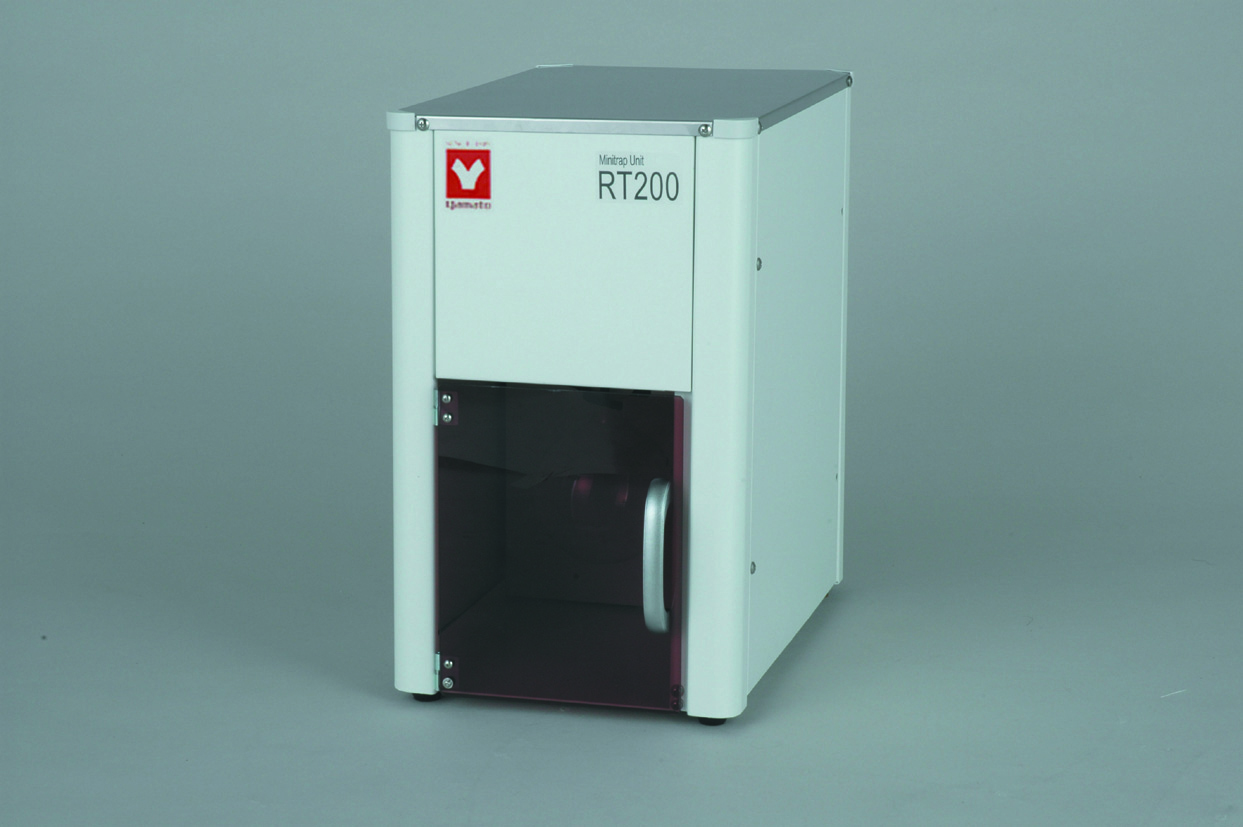

Organic Solvent Recovery Unit(RT200)
