Clean Oven

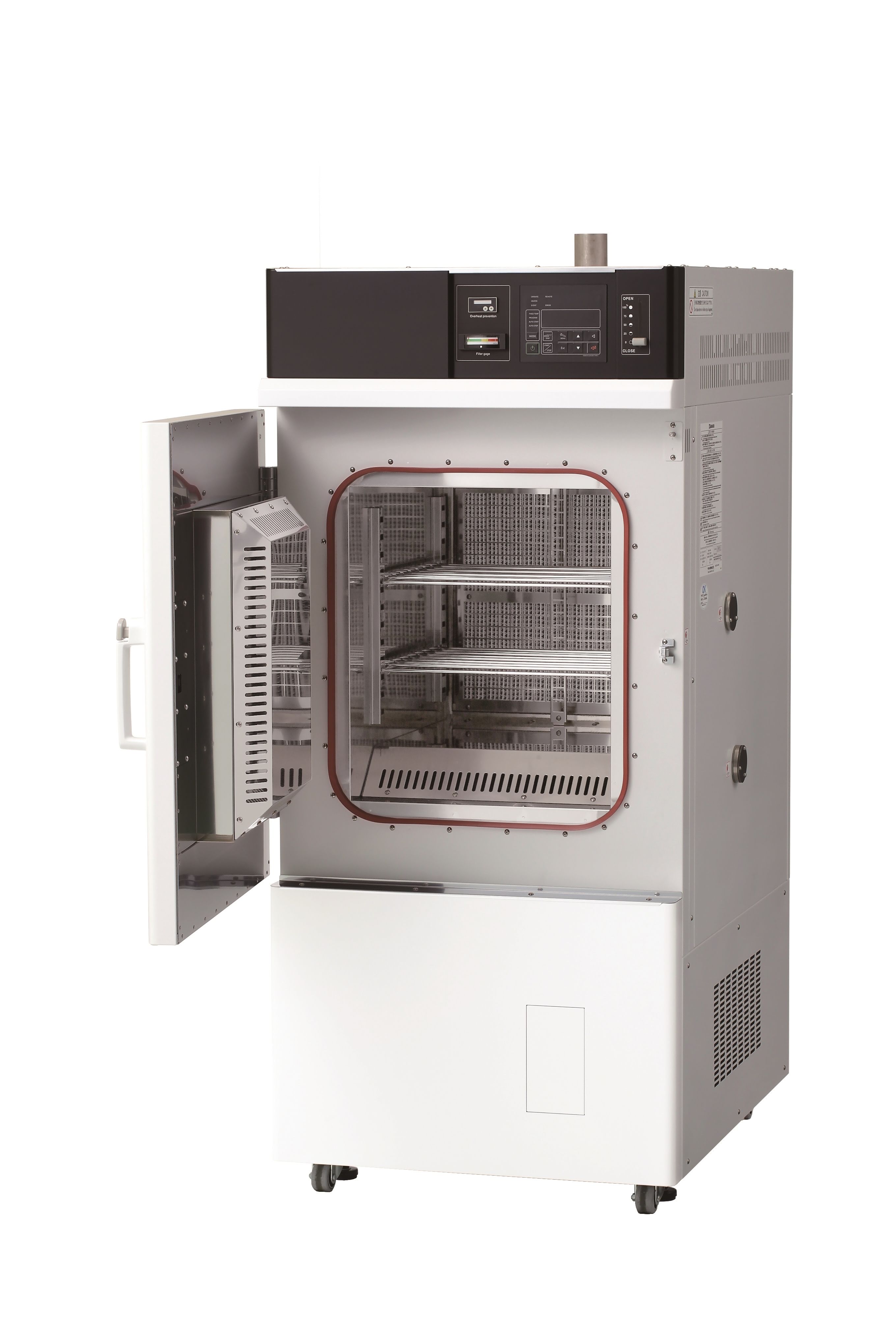

Clean Oven(DT611)

Item Code：212613

Model：DT611

Power Source：AC220/380V Three phase

Origin：Japan

Product Summary

Clean oven suitable for temperature test in dust-free environment.

Features

Improvement of visibility of HEPA filter replacement timing by three color indication.

Improvement of safety by phase-reversal relay, detecting of incorrect wiring of power supply when installing.

Cable diameter changed from 30mm I.D to 33mm I.D when compare withconventional equipments.

More options when compare with conventional equipment.

Specifications

Item Code

212613

Model

DT611

Temp. distribution accuracy

±4.0°C (at 360°C) JTM K05

Max. temp. reaching time

Approx. 80 min. (at 360°C)

Heater

Stainless pipe heater

Cable hole

33mm I.D. ×1

Timer

1 min. to 99 Hrs. 59 min

Operation function

Fixed temp., Auto-start, Auto-stop, Quick auto stop, program (Max.99 steps, 99 patterns, repeat)

Circulation method

Forced air circulation

Operating temperature range

Room temp.+30~360°C

Temp. adjustment accuracy

±0.3°C (at 360°C) JTM K05

Temp. fluctuation

1.0°C (at 360°C) JIS

Temp. gradient

±20°C(at 360°C) JIS

Clean level

Class 100 (when the temperature is stable)

Interior

Stainless steel

Exterior material

Cold rolled steel plate with melamine resin baking finish

Fan type

Sirocco fan, Condenser type motor

Differential pressure meter

Analog type (0~300 Pa)

Exhaust port

61mm O.D.×1

Filter

Heat resistant HEPA filter (dust collect : more than 99.97% at 0.3μm )

Caster

Wheel Dia. 50mm anti-fouling caster

Temp. controller

PID control by micro processor

Temp. setting method

Digital setting with UP/DOWN key

Temp display method

Digital display

Other display

Operation monitor (operation condition graphic display by LED patterns)

Additional functions

Calendar timer (max. 24 Hrs.), Calibration off-set function, Integration time (max. 65535Hrs.), Display the amount of power consumption/CO2 discharge/Heater operation amount, Power failure recovery mode, User setting information save and recall

Heater circuit control

Triac zero-cross control

Temp. sensor

K-thermocouple (double sensor)

Safety countermeasures

Self diagnosis functions (Sensor, Fan, Heater, Relay, Triac, Automatic overheat prevention), Independent overheat prevention, Key lock function, Electric leakage breaker, Door switch, Reverse phase protection

Shelf support step number

17 steps

Accessories Shelf plate

Stainless wire steel, 3 pcs

Accessories Shelf support

6 pcs

Internal dimensions（W×D×H mm）

600×600×600mm

External dimensions（W×D×H mm）

850×1175×1720mm

Internal capacity

216L

Power Source

AC220/380V Three phase

Weight

270kg

Catalog

Clean oven

Digest Catalog of Drying Oven

Optional Items

Stainless mesh basket shelf(ODT14)

Additional sensor (sheath sensor)(ODT48)

Silicon plug (with one hole)(ODT52)

External communication adapter set(OIN90)

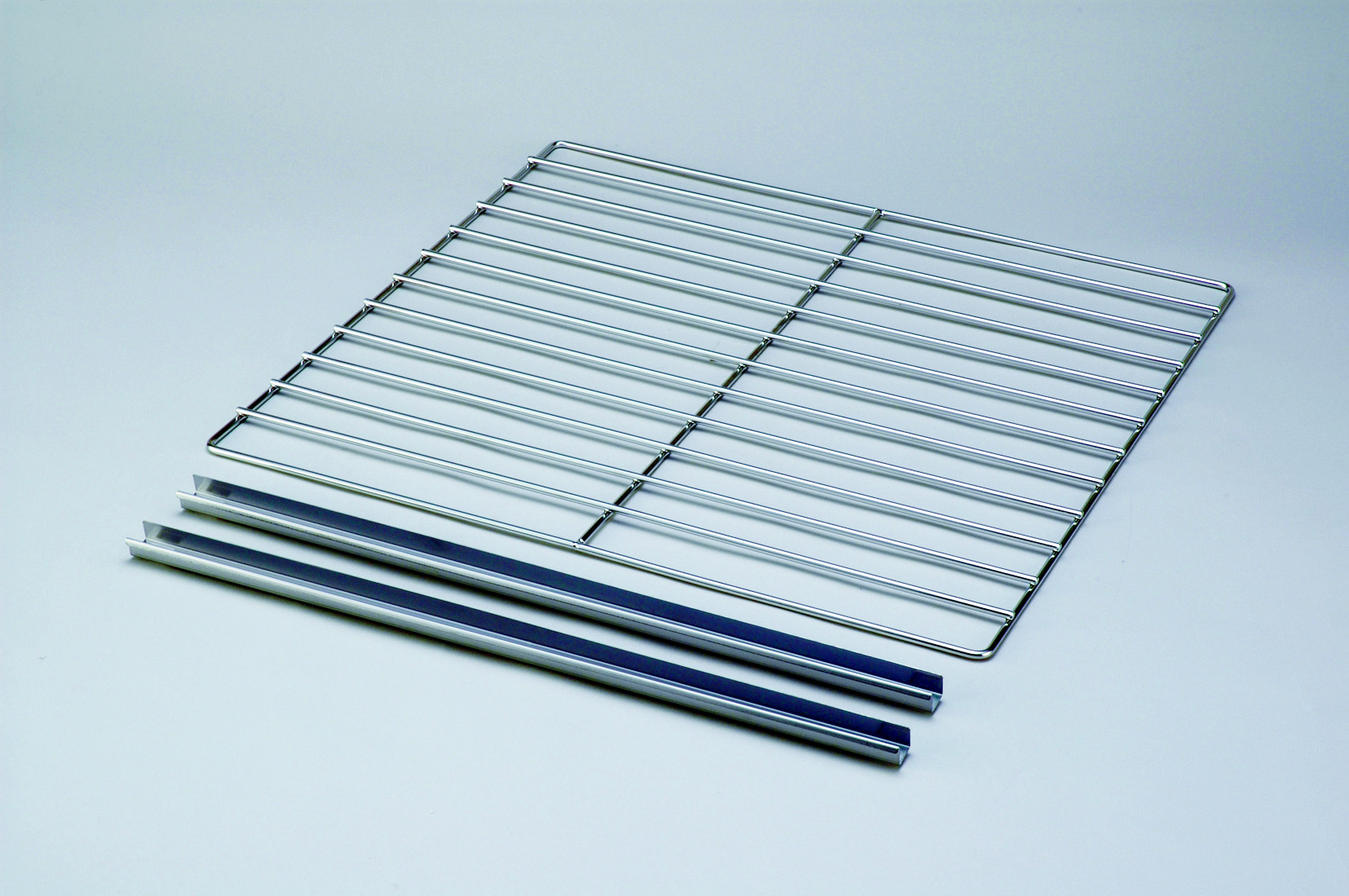

Stainless wire shelf(DE/DT62)

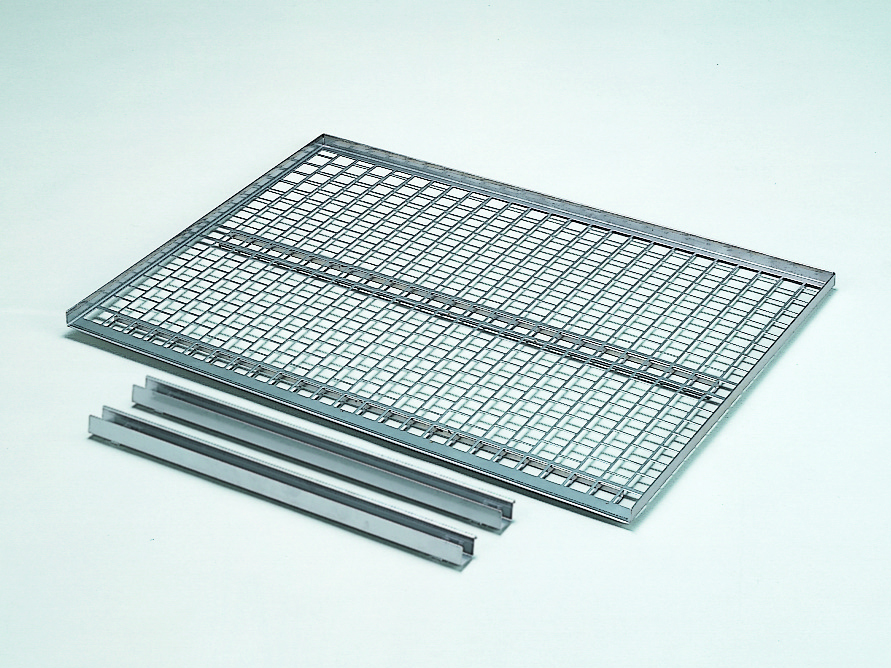

Stainless punching metal shelf(DE-DT62PTN)

Exhaust port for clean room(ODT18)

Automatic damper(ODT24)

N2 gas injection unit 50L/min(ODT28)

Digital recorder, 6 points, sensors are not included(ODT42)

Power cord change, 10m(ODT44)

External communication terminal (RS485)(ODT54)

Temperature output terminal (4-20mA)(ODT56)

External alarm terminal(ODT58)

Time-up output terminal(ODT62)

Operation signal output terminal(ODT64)

Event output terminal(ODT66)

Emergency stop switch(ODT36)
