Natural Convection Oven (Programmable)

Natural Convection Oven (Programmable)(DS401)

Item Code：212905

Model：DS401

Power Source：AC115V 11A

Origin：Japan

Product Summary

High performance temperature control is realized, and the CO2 discharge, power discharge also displayed at the monitor.

Features

Specifications

Item Code

212905

Model

DS401

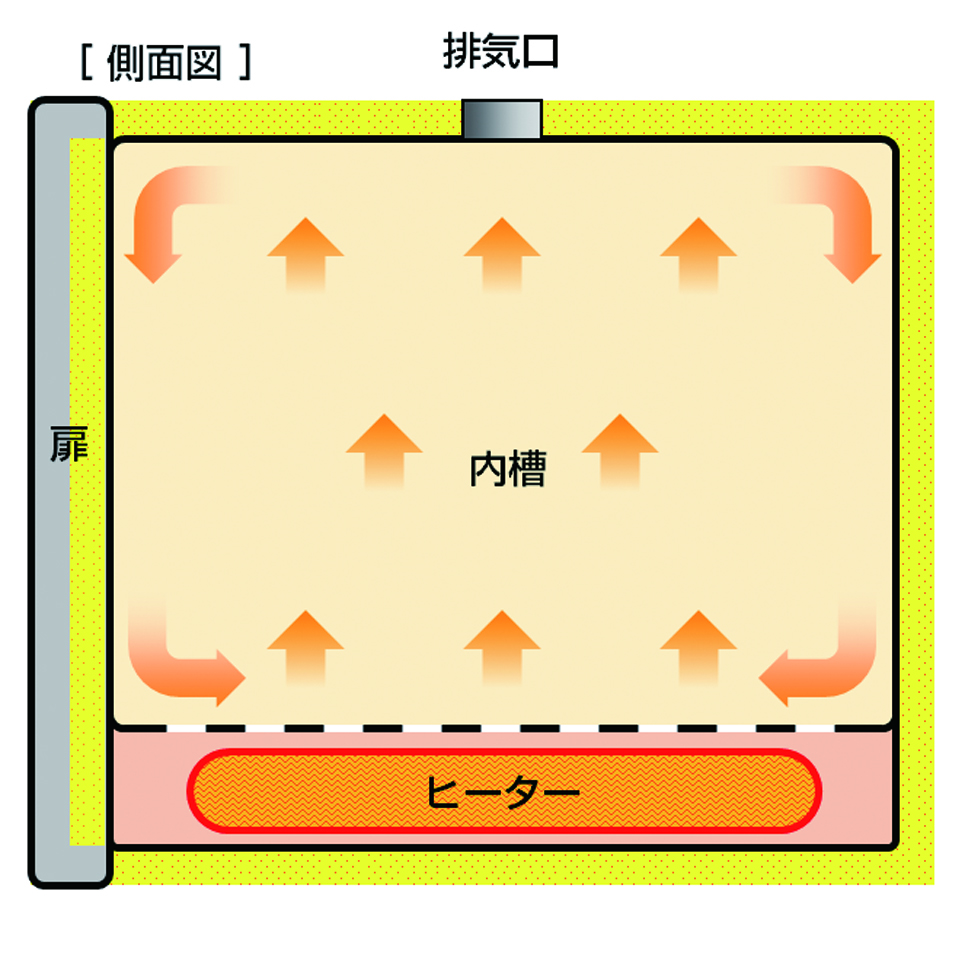

Circulation Type

Natural Convection

Operating temperature range

Room temp.+5~260°C

Temp. adjustment accuracy

±1.0°C (at 260°C )

Temp. fluctuation

3.0°C (at 260°C )

Temp. distribution accuracy

±5.0°C (at 260°C )

Temp. gradient

20°C (at 260°C)

Max. Temp. Reaching Time

Approx. 70 min

Interior Material

Stainless Steel

Exterior Material

Cold Rolled Steel Plate with Melamine Resin Baked Finish

Heat Insulating Material

Glass Wool

Heater

SUS Pipe heater 1.2kW

Sensor

K-Thermocouple (for temp. adjustment and overheat prevention)

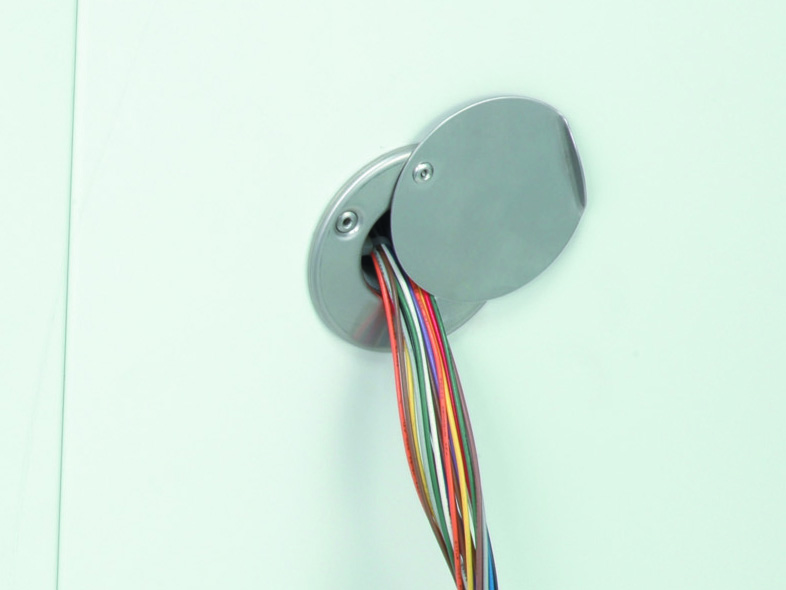

Cable Hole

I.D. 33mm (Right Side)

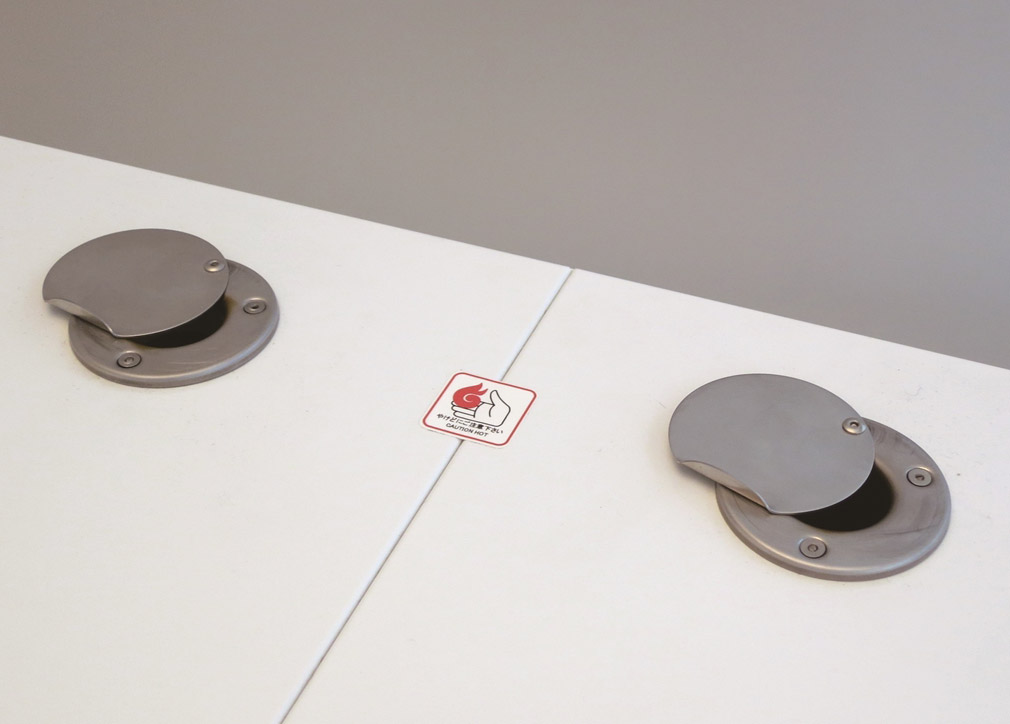

Exhaust Port

I.D. 33mm x 2 (Top Side)

Observation Window

250 x 280mm Tempered Glass x 2 pcs

Temp. Control System

PID Control by Micro Computer

Temp. Setting

Digital Setting by UP/DOWN Key

Temp. Display

Digital Display by Green LED

Other Display

Temp. Pattern Display for Operating Display by LED

Timer

1min. to 9hrs.59min.

Timer Resolution

1min.

Operating Function

Fixed Temp. Operation, Automatic Start, Automatic Stop, Program Operation , Quick automatic stop

Additional Function

Total Operation Hours Timer (to 65535hrs.), calendar time ( 24 hours), calibration offset, Power discharge, CO2 discharge, power failure return mode, user configuration information

Heater Circuit Control

Triac Zero-cross Type

Safety Countermeasure

Self Diagnosis Function (Abnormal Temp. Sensor, Heater Wire Broken, Triac Short Circuit, Automatic Overheat Prevention), Independent Overheating Prevention, Key Lock, Electric Leakage Breaker

Internal dimensions（W×D×H mm）

450×490×450mm

External dimensions（W×D×H mm）

560×600×820mm

Internal capacity

99L

Power Source

AC115V 11A

Weight

51kg
