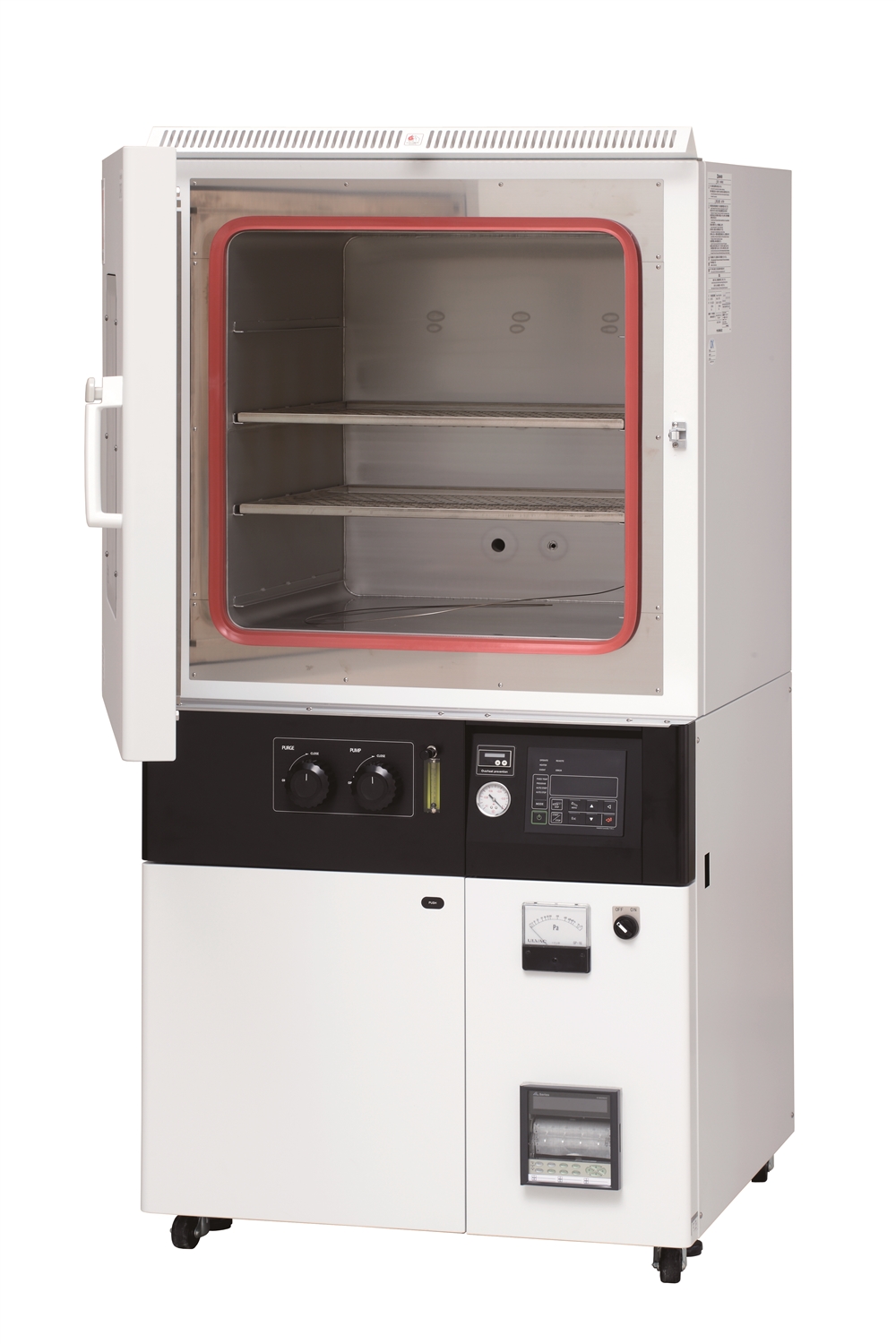

Vacuum Drying Oven

Vacuum Drying Oven(DP410)

Item Code：212158

Model：DP410

Standard Power Source：

Origin：Japan

Product Summary

Wide variation of compact and large scale ovens.

Features

With a high-accuracy controller system, the DP series is able to attain high tempe-rature with accuracy, also with advanced functionality and safety. The series not only performs curing, annealing, baking, de-foaming, hardening & de-aeration treat-ment, but also has vacuum storage ability and upgraded optional items.

The new Z controller system has been added in the current PID controller system, which has made the heat-up process faster by 37% (comparing with the previous model) and improved temperature stability when operating in low temperatures.

User-Friendly control panel and display.

Equipped with power consumption / CO2 emission monitor.

Various operation mode programmable, auto-start/ auto-stop, timer, calibration offset function, and some more various support functions are equipped as standard.

Input/output function (optional) 4-20mA analog output, external communication terminal (RS485), alarm output, operation signal, time-up signal, output port.

Safety countermeasure ●Self diagnosis functions (temperature sensor abnormal, heater wire broken). ●Independent overheating prevention & electric leakage breaker.

Specifications

Item Code

212158

Model

DP410

Method

Vacuum drying by decompressed chamber direct heating

Max. temp. reaching time

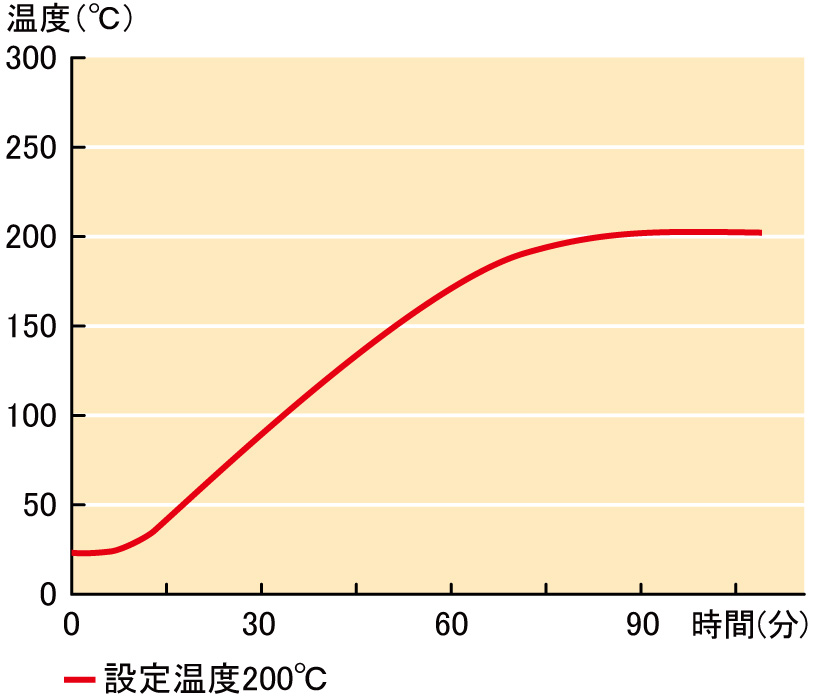

Approx. 80 min.

Interior material

Stainless steel

Exterior material

Cold rolled steel plate with baking coating

Door

Single swing door

Heat insulating material

Rock wool

Heater

Mica heater, 2.25 kW

Vacuum gauge

Bourdon tube type, 0 to 0.1 MPa (Gauge pressure)

Observation window

Tempered glass and polycarbonate resin plate

Temp. control method

PID control by microprocessor

Temp. setting method

Digital setting with UP/DOWN key

Timer

0 min. to 99 Hrs. 59 min.

Min. division

1 min.

Operation function

Fixed temperature operation, Auto-start operation, Auto-stop operation

Additional functions

Calendar timer (max. 24 Hrs.), Integration time (max 65535 Hrs.), Time display

Heater circuit control

Triac zero-cross control

Temp. sensor

K-thermocouple (Double sensor)

Operating temperature range

40~200℃

Operating pressure range

101 to 0.1 kPa (760~1 Torr) at absolute pressure

Temp. Fluctuation

3.0°C (at 200°C)

Pump connection port / Purge port

NW25 flange / Rc 1/4

Temp display method

Digital display by green LED

Safety countermeasures

Self diagnosis functions (Sensor, Heater, Triac, Automatic overheating prevention), Independent overheating prevention, Key lock function, Electric leakage breaker

Temp. adjustment accuracy

±1℃ （at 200℃） JTM K05

Leakage breaker

15A

Independent cut-out circuit

Set temperature range: 0 to 230°C

Shelf support step number

4 steps

Shelf support pitch

105mm

Accessories Shelf plate

Punched stainless steel, 2 pcs

Internal dimensions（W×D×H mm）

450×450×450mm

External dimensions（W×D×H mm）

670×669×1500mm

Internal capacity

91L

Power Source

AC200V 11.5A

Power Source (Modification)*

N/A (External transformer required)

Weight

210kg

Catalog

Oven, Vacuum

Digest Catalog of Drying Oven

Optional Items

External communication adapter set(OIN90)

Temperature output terminal (4-20mA)(ODP44)

Sheath sensor(500mm)(ODP36)

Sheath sensor(1500mm)(ODP38)

External communication terminal (RS485)(ODP42)

External alarm output terminal(ODP46)

Time-up output terminal(ODP48)

Operating signal output terminal(ODP52)

Event output terminal(ODP54)

Vacuum pump switch(ODP84)

Vacuum pump switch(ODP56)

Pirani vacuum gauge(ODP58)

Pirani vacuum gauge(ODP62)

Digital recorder(ODP64)

Digital vacuum indicator(ODP82)

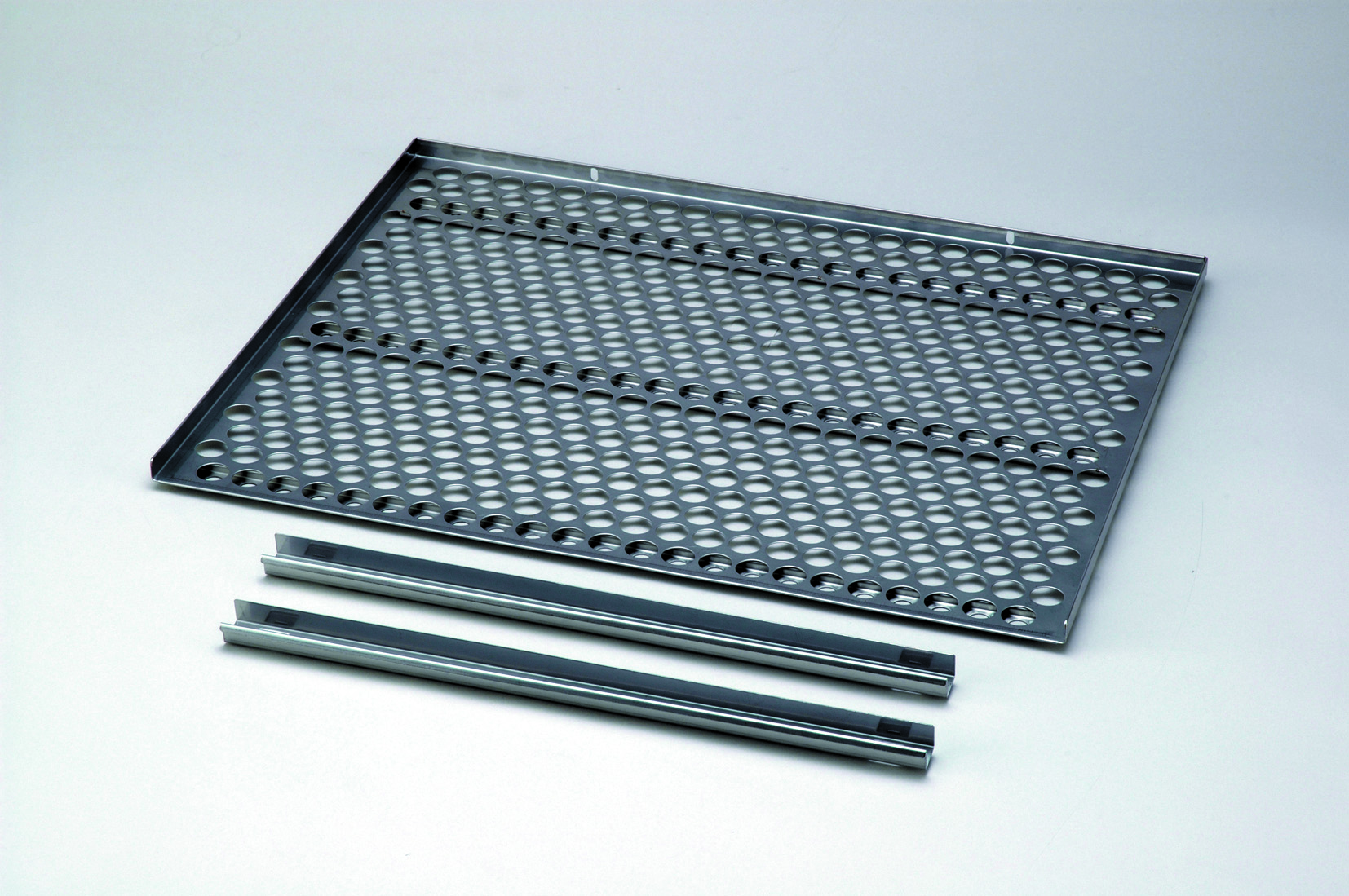

Stainless punching metal shelf(DP31-T)

N2 gas supply unit(ODP66)

Slide type vacuum pump Stand A(ODP72)

Slide type vacuum pump Stand B(ODP76)
