Natural Convection Oven

Natural Convection Oven(DY600)

Item Code：212014

Model：DY600

Power Source：AC220V 7A Single-phase

Origin：Japan

Product Summary

Easier operation is based on variable function settings.

Features

Easy operation, available for fixed temp. and auto stop operation.

Self-diagnosis circuit (abnormal temp. input, overheat prevention of upper temp. limit), overcurrent ELB, independent overheat protector.

Specifications

Item Code

212014

Model

DY600

Method

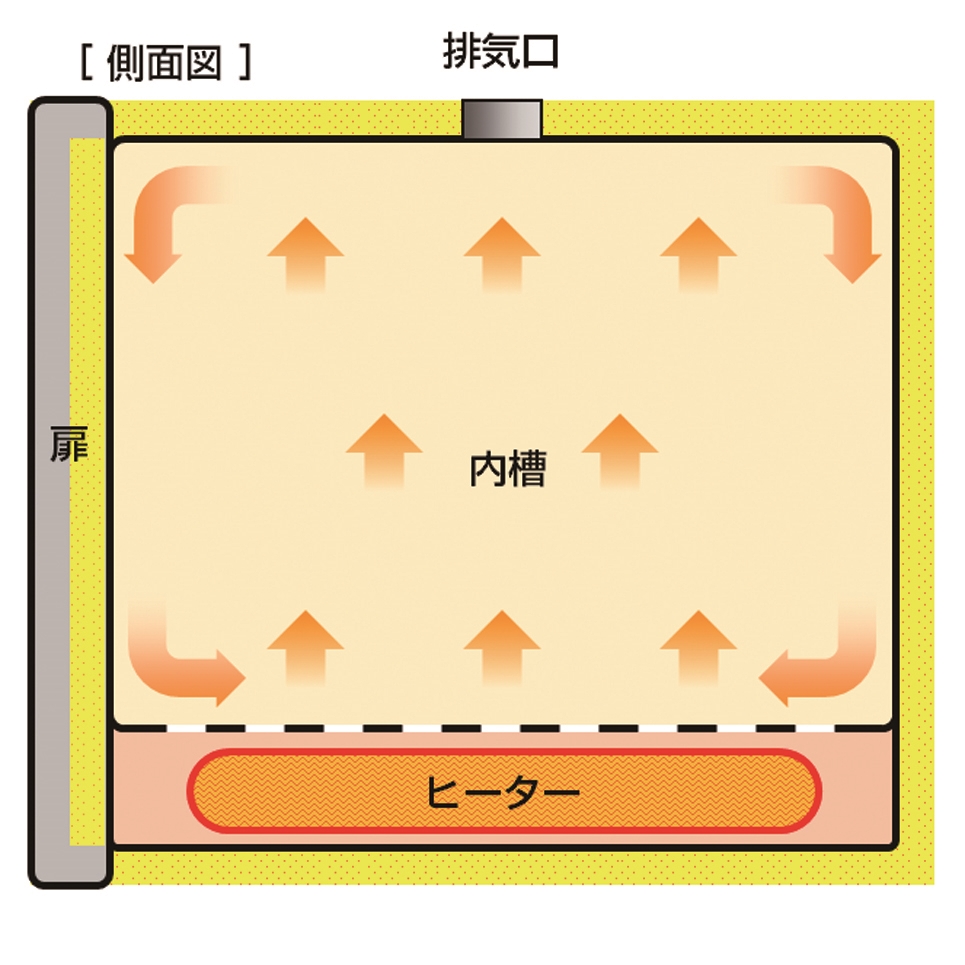

Natural gravity convection

Operating temperature range

Room temp.＋5～280℃

Temp. adjustment accuracy

±1℃（at 280℃）

Temp. distribution accuracy

±10℃（at 280℃）

Max. temp. reaching time

Approx. 120 min

Interior/Exterior material

Stainless steel plate / Baking finish

Heater

Iron-chrome wire heater

Heater

1.36kW

Exhaust port

Rotary dampers with a 20% opening rate at closing

Temp. control

PID control

Temp. setting

Digital setting

Temp. display method

Digitqi display method (Resolution:1°C)

Timer

1 min. to 9999 min.

Operation function

Fixed temp. operation, Auto stop operation

Sensor

Pt100

Safety device

Self-diagnosis (Temp. seosor abnormal), Independent overheat protector, Overcurrent ELB

Shelf plate with standard load

Approx. 15kg/pcs.

Shelf support step number/pitch

12 steps / 35mm

Shelf plate

Stainless steel punching metal

Shelf plate / support

2 pcs. / 4 pcs.

Internal dimensions（W×D×H mm）

600×510×500mm

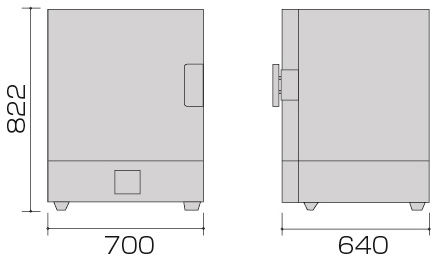

External dimensions（W×D×H mm）

700×640×822mm

Internal capacity

153L

Power Source

AC220V 7A Single-phase

Weight

56kg

Catalog

Natural Convection Oven, Economy

Optional Items

Seismic isolation rubber

Stand(ONS60)

Stacking support(ODK84)

Stainless punching metal shelf for DY600

Same Series Product

Natural Convection Oven(DY400)

Natural Convection Oven(DY300)

Natural Convection Oven(DY611C)

Natural Convection Oven(DY411C)

Natural Convection Oven(DY311C)
