Laboratory Washer (Fully-automatic, Large Capacity)

Laboratory Washer (Fully-automatic, Large Capacity)(AW83Z)

Item Code：200000

Model：AW83Z

Power Source：AC220V/AC380VThree phase with step-down transformer

Origin：Japan

Product Summary

Ideal for washing large equipment and a large amount of instruments

Features

Two washing chambers

Selectable three washing patterns

Jet rack (option) can remove the dirt of containers more easily

Fixing type rack and spinning type jet nozzle can avoid the brakeage of containers

Available hot water washing by built-in heater

Liquid detergent is automatically supplied from detergent container (powder detergent also available by adding powder in each time)

Specifications

Item Code

200000

Model

AW83Z

Washing water temp.

Supplied temp. to 80℃

Accessories

Supply hose I.D.18mm, 2m×1pc, Drain hose (with coupler) 2m×1pc, Detergent (Amorphous phosphorus) 1kg, Measuring spoon (for 50ml) 1pc, Test tube rack support 1pc, Hose clamp 1pc

Washing compartment

Two washing chambers

Washing compartment

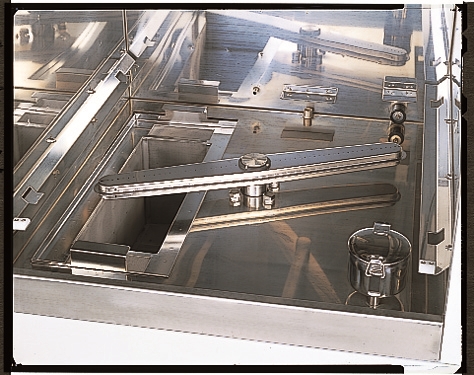

Pressure water jet from two directions (Top and bottom), Jet nozzle spinning

Washing compartment

Upper : Jet nozzle rotation, Lower : Fixed type (jet rack)

Washing pattern

Selectable three washing patterns *Final rinse is option

Washing pattern

1. Pre-washing → Washing → Rinse → Final rinse*

Washing pattern

2. Washing → Rinse → Final rinse*

Washing pattern

3. Rinse → Final rinse*

Washing time

Pre-washing, Washing, Rinse: settable 1 to 99min

Washing time

Rinse: settable up to 5 times by batch system

Washing time

Final rinse (to connect with pure water supplying system): Rinse by pure water 50L, settable up to 5 times, start to wash after reaching to the set water level, Timer count starts after reaching to the setting temp.

Supplying water temp.

Room temp. to 60℃

Washing water temp.

Water supply temp. to 80℃. Same water temp. for pre-washing and washing, no water heat-up for rinse and final rinse

Liquid detergent supplying type

Automatic supply by pump (Adjustable supply amount)

Liquid detergent tank capacity

Required water amount

Approx. 28L for each pre-wash, wash and rinse

Hot water supply system

Heater (Built-in: 6kW) heat-up or connection to primary hot water supply

Container stand

Shelf board 2pcs. (Standard)

Water supplying system

Solenoid valve Open/Close, water flow amount is fixed by flow switch

Water drain system

Forced drain by pump

Exterior

Chrome-free electrogalvanized steel sheet, baking finish

Interior

Stainless steel

Pump

Washing pump: 355W/560W Drain Pump: 45W

Shelf board

550×550mm, max. load 245N (25kg)

Internal dimensions（W×D×H mm）

600×630×1080mm

External dimensions（W×D×H mm）

860×770×1795mm

Power Source

AC220V/AC380VThree phase with step-down transformer

Weight

220kg

Catalog

Laboratory Washer (Fully-automatic, Large Capacity)

Optional Items

Detergent(AW6283)

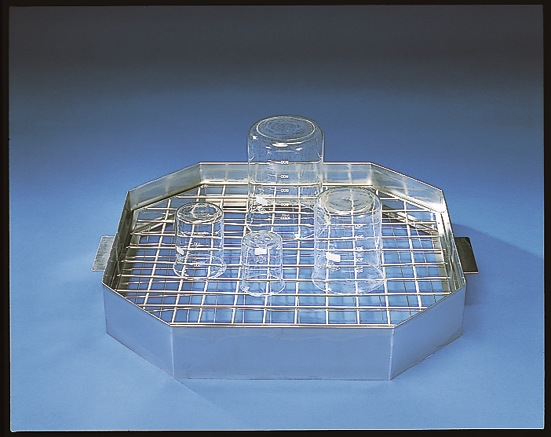

Beaker rack(AW6283)

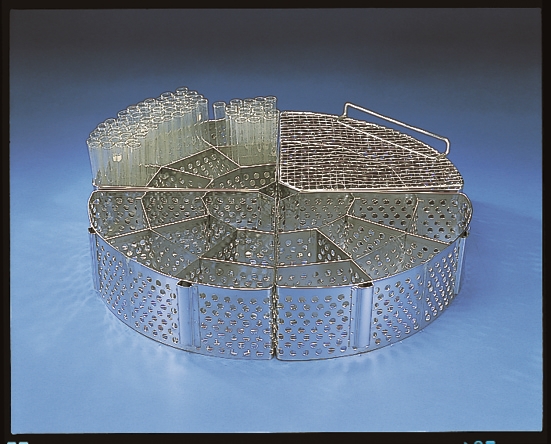

Test tube rack(AW6283)

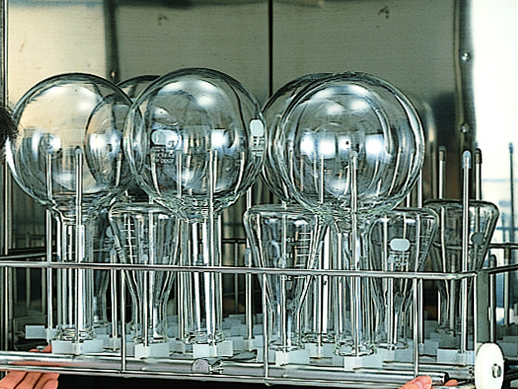

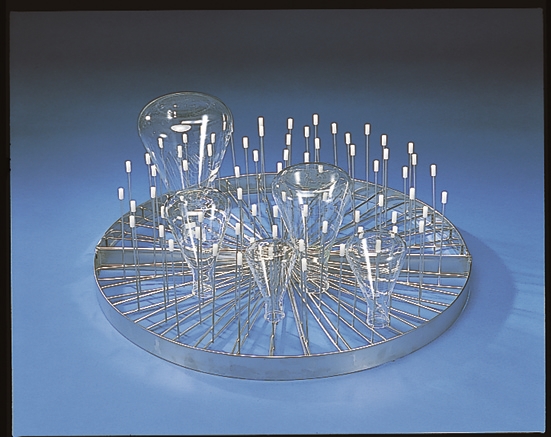

Flask rack(AW6283)

Pure water supplier(AW83)

Jet rack(AW83)

Test tube rack support(OAW10)

Port position change(AW83)

IE bomb For pure water supplier(AW83)

Same Series Product

Laboratory Washer (Semi-automatic, Compact)(AW47)

Laboratory Washer (Automatic, Compact)(AW62)
