Water purifying method
Ion-exchange (Controlled by key)
Raw water supply
One touch coupler water connection resin hose
Deionized water production
Approx. 1L/min. (Continuously produced)
Ion-exchange resin cartridge
2L ion-exchange resin with activated carbon (CPC-P) x 1pc. 2L ion-exchange resin (CPC-E) x 1pc.

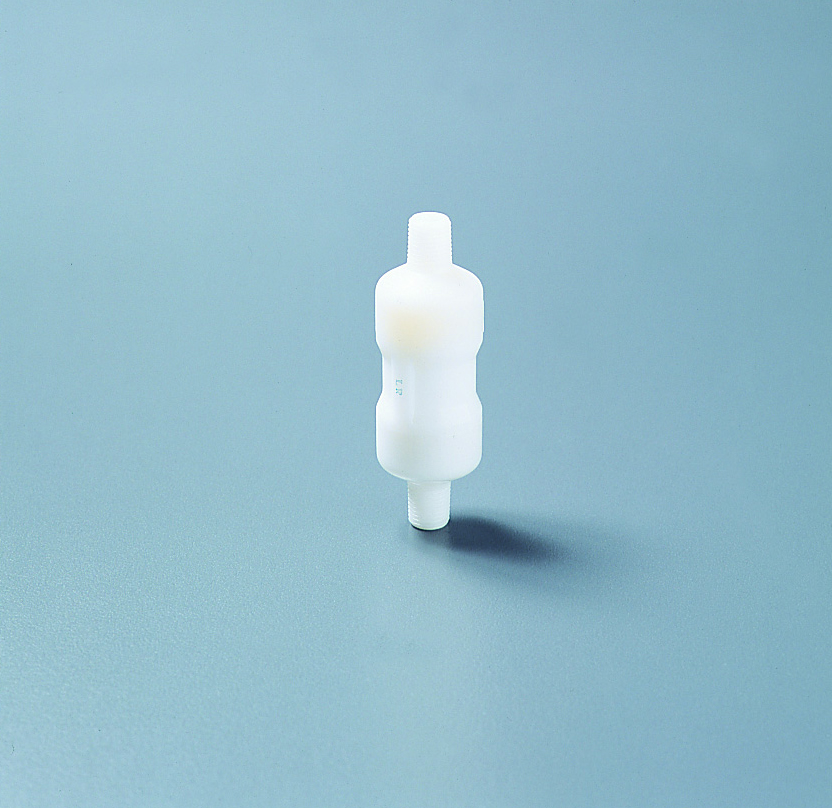

Final filtration
0.1μm (Membrane filter)
Water leakage detection
Solenoid valve forced shutdown of water supply by detecting water leakage
Raw water pressure range
0.5 to 5x100kPa (0.5 to 5 kgf/cm2)

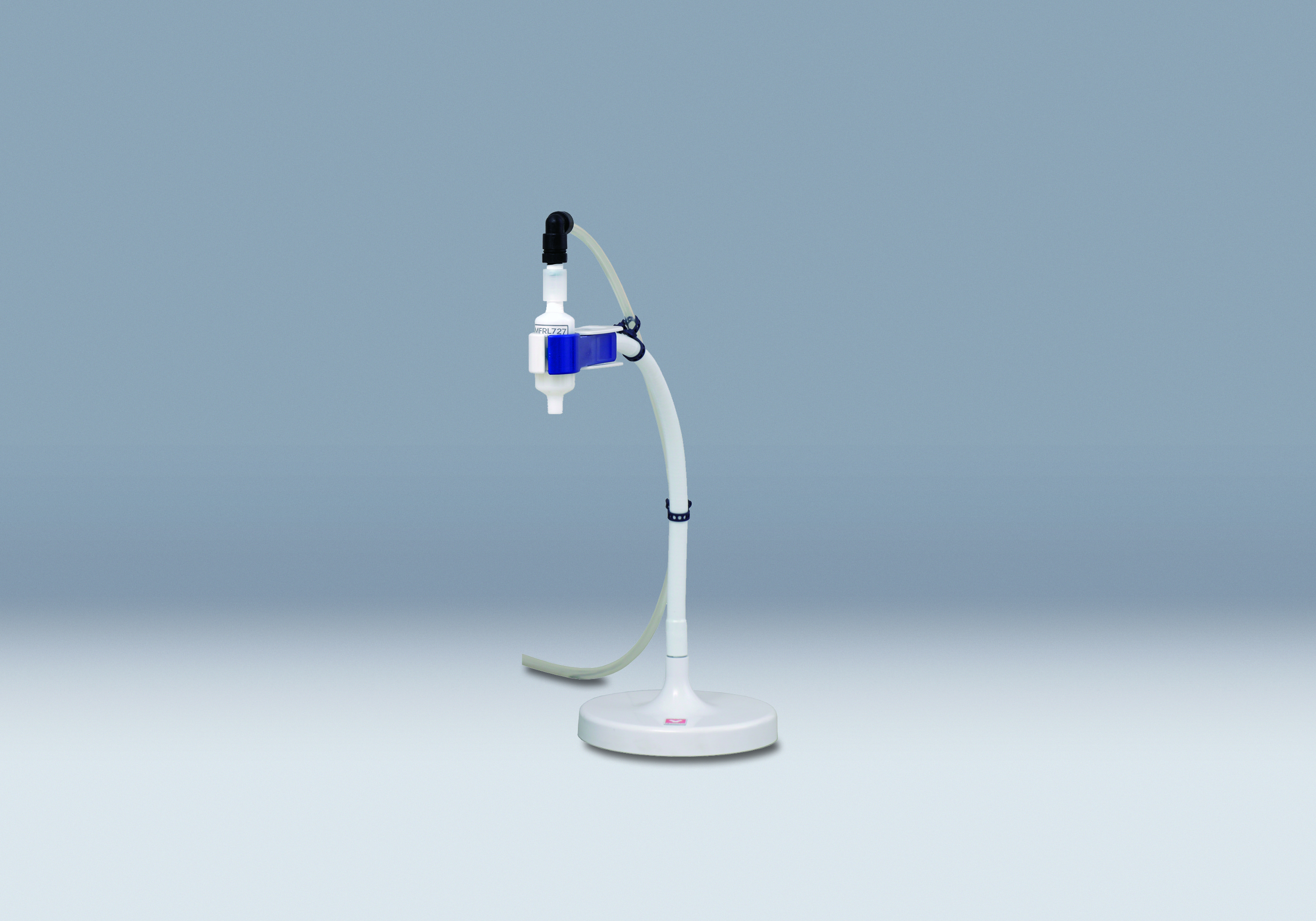

Sampling port
250mm above floor RC1/4 (Membrane filter connection)
Safety device
Circuit breaker, Water leakage indicator, Pressure reducing valve, Water quality abnormal alarm
Water quality display
7 segments LED display (Conductivity / Resistivity)
Other display
Display of consumables replacement (CPC-P and CPC-E: Should be replaced simultaneously to prevent degradation of water quality, Membrane filter), Alarm display (Water leakage alarm)
Accessories
Raw water supply hose, Power cord (2m), Ion-exchange resin CPC-P+CPC-E (WL220/WL220T), Membrane filter (WL200/220),Seal tape
External dimensions(W×D×H mm)
350×350×450mm
Power Source
AC100 to 240V0.2ASingle-phase
