Economical Incubator (Natural Convection)

Economical Incubator (Natural Convection)(IC802)

Item Code：211197

Model：IC802

Power Source：AC220V4ASingle phase

Origin：Japan

Product Summary

Best-selling incubator for long years, various capacity

Features

Air Jacket enables the excellent temperature uniformity

Inner observation glass window can avoid rapid temperature changing inside the chamber even the external door is being opend

Equipped with Self Diagnostic Function, Key-lock Function and Short-circuit Breaker

Specifications

Item Code

211197

Model

IC802

Type

Air Jacket Type, Natural Convection

Operating Temp. Range

Room Temp. +5～80℃

Temp. Adjustment Accuracy

±0.5℃ at 37℃

Temp. Distribution Accuracy

±1.0℃ at 37℃

Interior

Stainless Steel

Exterior

Cold Rolled Steel Plate with Chemical-resistant Coating

Insulation Material

Glass wool

Heater

0.7 kW

Exhaust Port

30mm ID x 2 (one each side)

Temp. Control Method

PID cntrol

Temp. Setting Method

Digital Setting by ▼▲ Key

Temp. Display

Measuring Temp.: Green 4 digit LED Digital Display / Setting Temp.: Red 4 digit Digital Display

Timer

1 to 99hrs 59min. and 100 to 999.5hrs (with Timer Wait Function)

Operating Function

Fixed Temp., Quick Auto-stop Operation, Auto-stop Operation, Auto-start Operation

Additional Function

Calibration offset, Key-lock Function, Blackout Recovery Function

Sensor

Temp. Control: Pt. Thermal Resistance Pt100Ω, K-Thermcouple: Overheat Preventor

Safety Device

Self Diagnostic Function（Automatic Overheat Prevention, Abnormal Temp. Sensor, Heater Disconnection, SSR Short Circuit, Overheat Preventor, Overcurrent ELB, Key-lock Function

Shelf Loading Capacity

Approx. 15kg/shelf

Shelf Support step number/Pitch

Max. 29 steps / 30mm

Shelf/ Support

4 shelves/ 8 supports

Internal Dimensions（W×D×H mm）

600×530×1000mm

External Dimensions（W×D×H mm）

710×656×1619mm

Internal Capacity

318L

Power Source

AC220V4ASingle phase

Weight

102kg

Catalog

Incubator, Natural convection

Optional Items

Stainless punching metal shelf

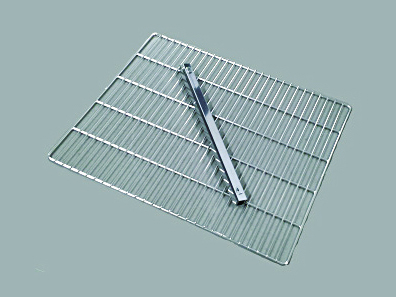

Stainless steel wire shelf(OIL22)

Time-up output terminal(ODK14)

Temperature output terminal（4-20mA）(ODK12)

Cable port(ODK34)

Cable port(ODK32)
