Operating temperature range
Room temp.+5~80°C
Temp. adjustment accuracy
±0.05 deg.C (at 40 deg.C)
Temp. distribution accuracy
±0.1 deg.C (at 40 deg.C)
Temp. rising time
Approx. 40 min (from 23deg.C to 80deg.C)
Shaker motor
Geared motor, 25W
Shaking rpm setting
Analogue setting/scale display No-step speed control: 20 to 160/min

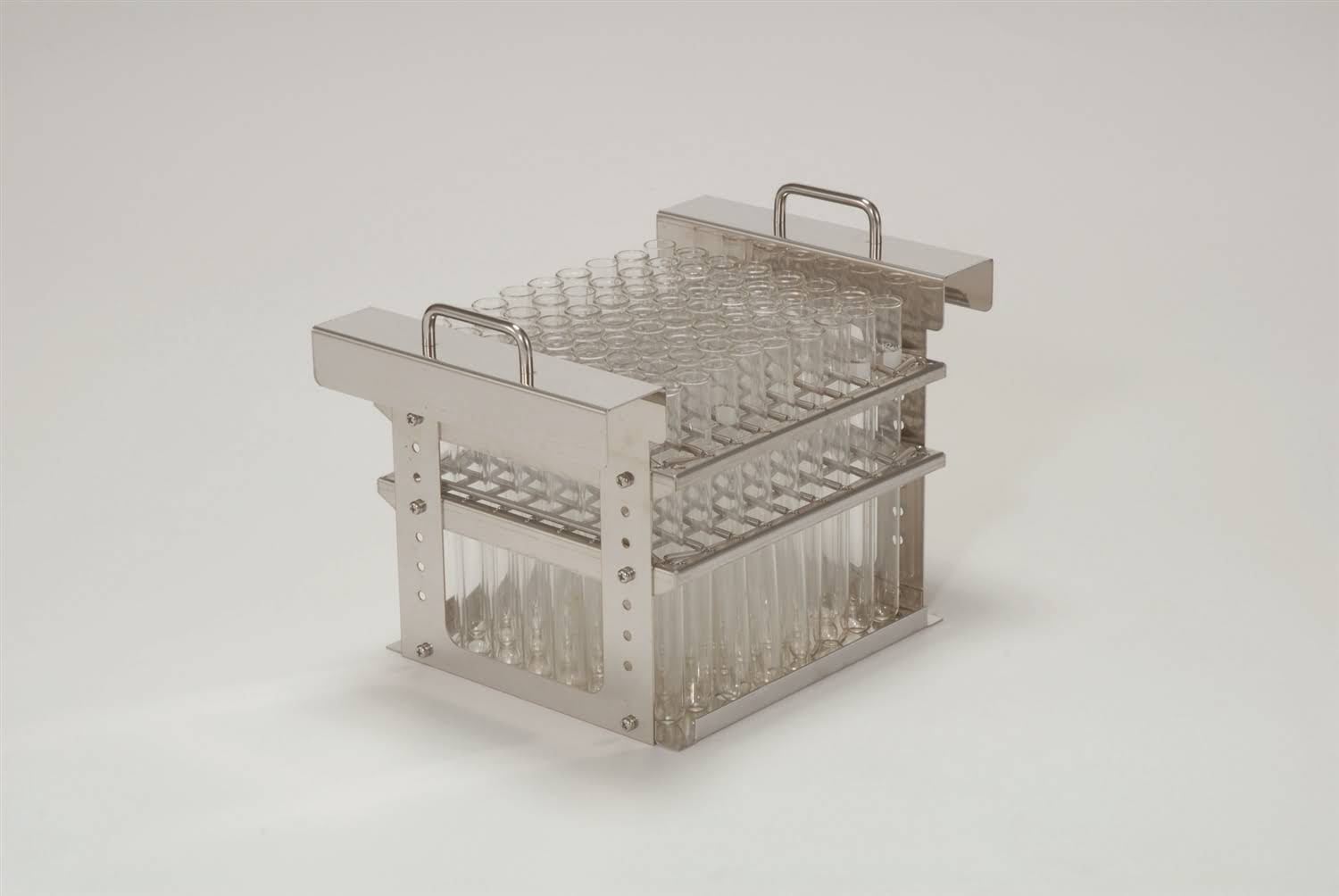

Number of containers stored
Test tube: 16.5 dia. x 72 Flask: 100 mL x 5, 200 mL x 4, 300 mL x 3, 500 mL x 1
Controller
PID digital setting/display Fixed operation, timer operation (auto stop, quick auto stop, auto start)
Stirrer
Water jet stirring, induction motor
Heater
1.2 kW Copper pipe nickel plated
Safety functions
Automatic heating, sensor disconnection, over current electric leakage breaker, no-liquid heating prevention float switch
Internal dimensions(W×D×H mm)
224×328×200mm
Power Source
AC115V/AC220VSingle-phase with step down transformer
Remarks(dimensions)
14.7L
External dimensions(W×D×H mm)
280×459×450mm
