Spray Dryer Pulvis Mini Bed

Spray Dryer Pulvis Mini Bed(GB210-B)

Item Code：212778

Model：GB210-B

Standard Power Source：

Origin：Japan

Product Summary

Spray dryer capable of granulating and drying wet powder.

Features

Designed to granulate powder anddry wet powder using a fluid bed. Thisis a fluid bed drying granulator usedin combination with the basic unitGB210 and Mini-bed attachmentGF200.

The chamber is made of ultra hard glassand the user can observe status of thefluid bed or spraying status. Also, the flowage meter, the spraying pressure meter, the chamber inlet/outlet temperature indicator are useful for evaluation of data.

The unit can also be used as a sprayingdryer by installing the mini sprayattachment GF300 (optional)

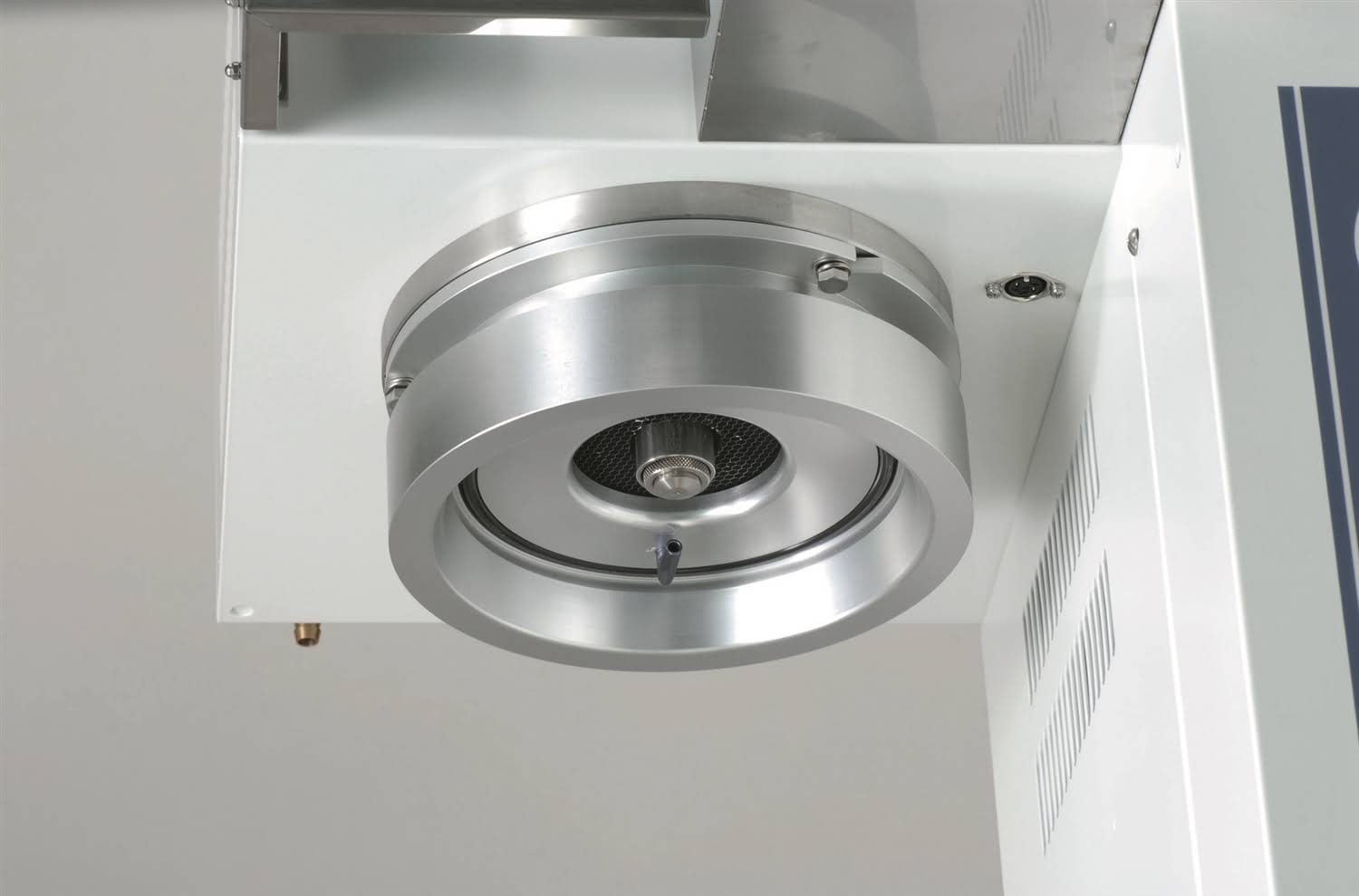

The unit has an automatic lift as astandard to enable convenient installationor removal of the glass chamberattachment

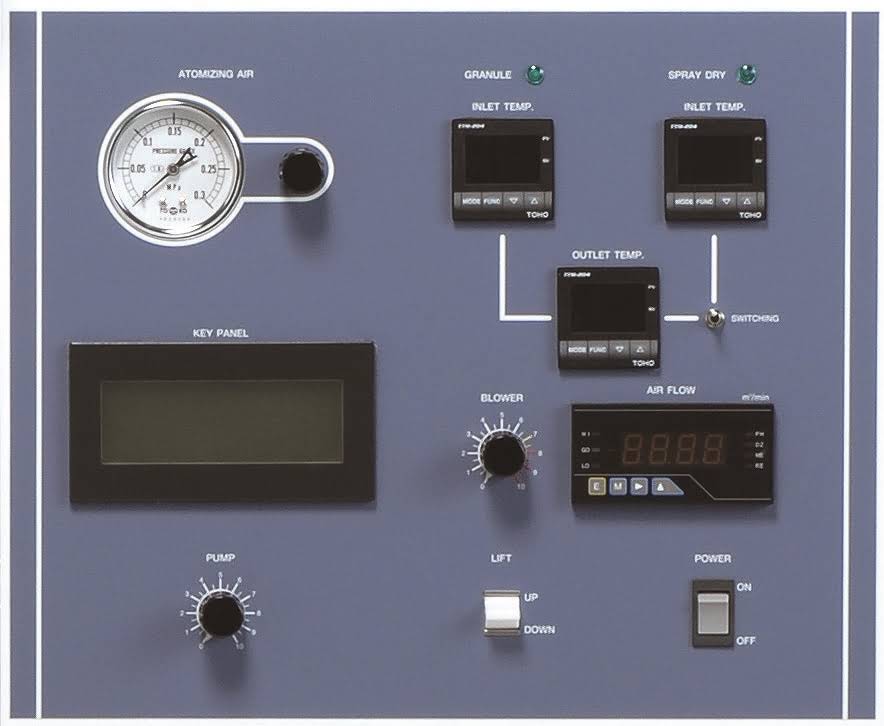

Inlet temperature, outlettemperature, anddrying air amount aredigitally displayed.Setting is made onthe touch panel thatallows operation settings, operation statusdisplay as well as error display, and settingsof various operation conditions.

Specifications

Item Code

212778

Model

GB210-B

Moisture evaporation capacity

Max. 1300 mL/h

Operating temp. range

40~220 °C (inlet temperature), 0~°60(outlet temperature)

Temp. control accuracy

±1 °C

Spray method

Two-way nozzle, nozzle No. 1A as standard

Drying air volume adjustment range

0~0.7 m³/min

Spray air flow adjustment range

0~26 mL/min

Spray pressure usage range

0~0.3 MPa

External output

Inlet temperature, outlet temperature, temperature outlet (4-20 mA)

Automatic lift

Moving up/down of glass chamber automatic lift

Temp. control method

PID digital temperature adjusting device

Touch screen

Blower, heater, liquid sending pump, pulse jet switch, error display

Control switch

Inlet temperature, output temperature control switch (outlet temp. control is conditional)

Sensor

K-thermocouple

Heater

2.0kW (at 200V) to 2.88kW (at 240V)

Liquid feed pump

Fixed amount peristaltic pump

Spraying air pump

Spraying air compressor (sold separately) is used

Service socket

For stirrer: AC100V, Max. 2A

Suction blower

Bypass blower, brushless DC motor

Filter

Suction filter, exhaust filter

Spray nozzle cooling structure

Connector: nipple×2, O.D.: ø10.5mm

Spray air connection

Nipple diameter: ø7mm

Exhaust connection diameter

ø50mm

Safety functions

Inlet/outlet temperature overheat, sample feed reverse rotation mechanism, over current electric leakage breaker, nozzle connection error

Accessories

Silicon tube (with a stopper)×3, tiron tube (with a stopper)×2, exhaust duct (with one hose band)×1, outlet temperature sensor, spray air tube, sample box, static electricity removal earth, teflon braided hose 5m (with two hose bands), container table

External dimensions (W×D×H mm)

760×420×1350mm

Power supply

AC200, 220, 240V

Weight

110kg
