Spray Dryer

Spray Dryer(ADL311-A)

Item Code：212737

Model：ADL311-A

Standard Power Source：

Origin：Japan

Product Summary

Easily micronize liquid samples with a spray dryer

Features

Easy setup, easy operation

Suitable for heat sensitive samples. High heat is notdirectly applied to dry fine powder

Obtain contaminant free fine powder which is notoxidized and contains minimal moisture

Direct drying of solution or solution liquid into finepowder. No pre- or post processes such as filtration,separation, or pulverization required

Easy operation with one-touch detachable mechanismfor drying chamber and cyclone

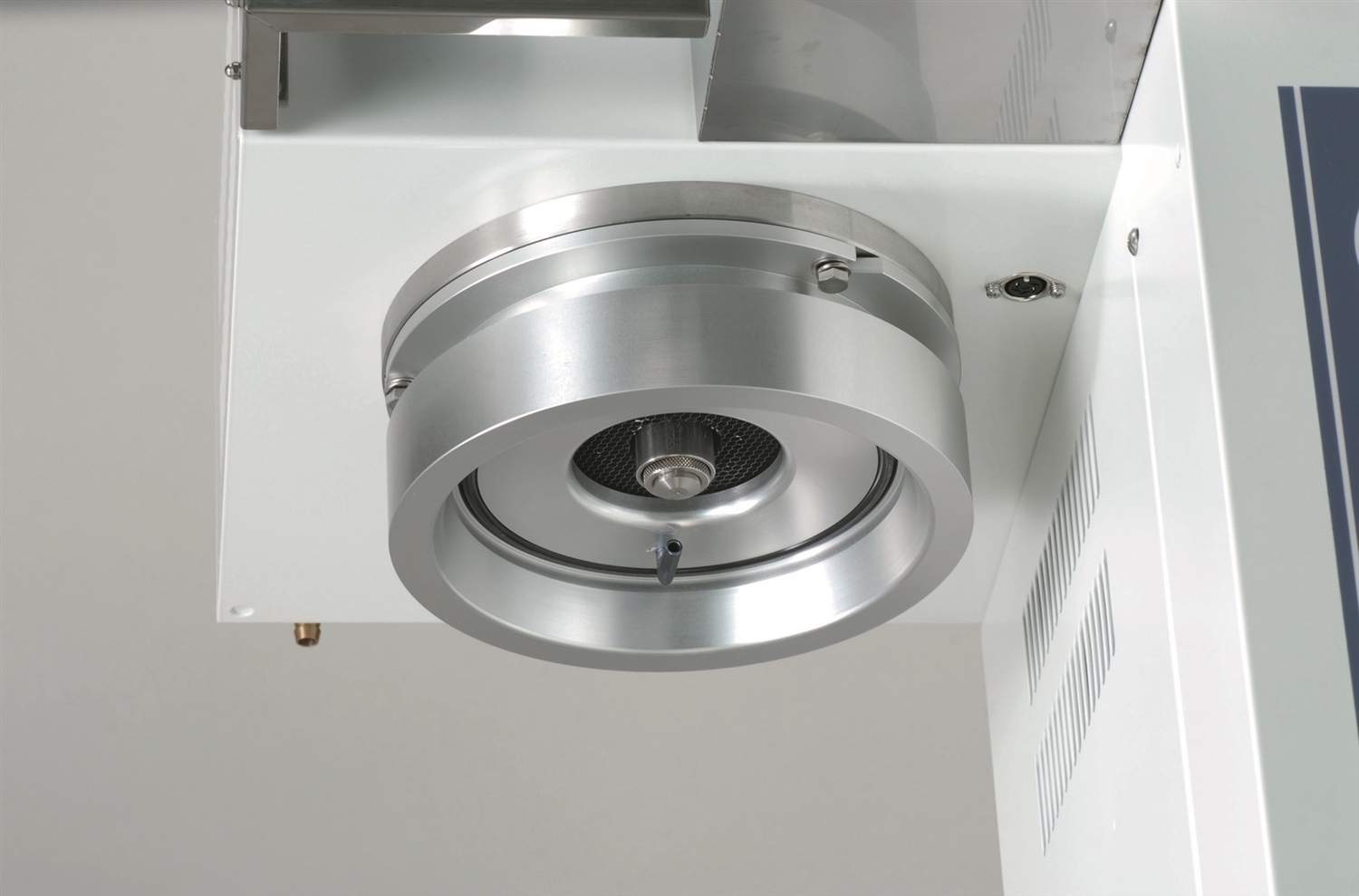

Unique peristaltic pump, nozzle cooling mechanism,pulse jet mechanism and a nozzle knocker for stablespray drying

Specifications

Item Code

212737

Model

ADL311-A

Moisture evaporation capacity

Max. 1300 mL/h

Operating temp. range

40~220 ℃(inlet temperature), 0~ 60℃(outlet temperature)

Temp. control accuracy

±1 ℃

Drying air volume adjustment range

0~0.7 ㎥/min

Spray pressure usage range

0~0.3 MPa

Spray air flow adjustment range

0~26 mL/min

Nozzle cleaning function

Manual pulse air cleaning from the nozzle front end

External output

Inlet temperature, outlet temperature, temperature outlet (4-20 mA)

Temp. control method

PID digital temperature adjusting device

Touch screen

Blower, heater, liquid sending pump, pulse jet switch, error display

Control switch

Inlet temperature, outlet temperature control switch (outlet temp. control is conditional)

Sensor

K-thermocouple

Heater

2.0 kW (at 200V) to 2.88 kW (at 240V)

Liquid feed pump

Fixed amount peristaltic pump

Spraying air pump

Spraying air compressor (sold separately) is used

Service socket

For stirrer: AC100V, MAX2A

Suction blower

Bypass blower

Filter

Suction filter, exhaust filter

Solvent recovery

Spray nozzle cooling structure

Connector: nipple x 2, O.D.:⌀10.5 mm

Spray air connection

Nipple diameter:⌀7 mm

Spray air pressure

Bourdon tube: 0.3 MPa

Exhaust connection diameter

⌀50mm

Safety functions

Inlet/outlet temperature overheat, sample feed reverse rotation mechanism, over current electric leakage breaker, nozzle connection error

External dimensions (W×D×H mm)

580×420×1125mm

Power supply

AC200, 220, 240V

Weight

80kg

Catalog

Spray Dryer ADL311A/SA

Spray Dryer General and Comparison Catalog

Spray Dryer Preliminary Survey Form

Sample Determination for Spray Drying.pdf

Spray Dryer Preliminary Survey Form.pdf

Optional Items

Fine particulate sample collecting cyclone(OGF10)

Safety cover(ODL22)

Static removal brush set(ODL38)

Regulator(ODL40)

Viton packing for cyclone inlet/outlet port (2 types/set）(OGF22)

Teflon packing for inlet/outlet port (2 types/set)(OGF24)

Supply air filter box (for 0.3μｍ collection)(ODL40)

Dry air flow meter

Inlet/outlet temperature recorder (3-dot)
