Water Purifier (Ion-exchange + Distillation)

Water Purifier (Ion-exchange + Distillation)(WG1013)

Item Code：253235

Model：WG1013

Power Source：AC220/230/240V, with step-down transformer

Origin：Japan

Product Summary

High-performance pure water system that reduces TOC levels and complies with JIS K 0557 A4 standards.

Features

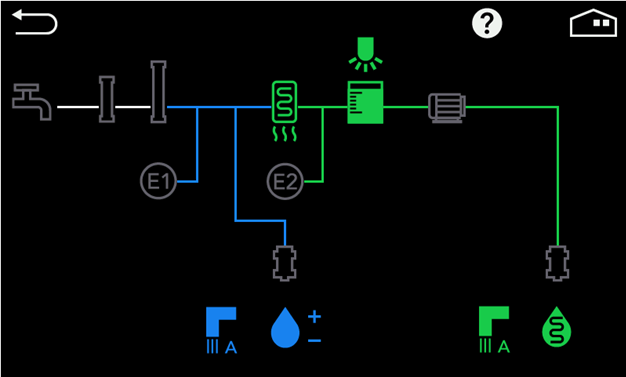

High-purity water is produced through ion exchange → distillation → filtration.

A pretreatment column (activated carbon + 0.1μm hollow-fiber membrane) removes impurities in the feed water, including microorganisms, residual chlorine, and organic matter.

A high-performance ion-exchange resin column (CPC-S, 4L) provides high-purity water with low conductivity and low TOC levels.

A filter (0.1μm hollow-fiber membrane) is provided as standard at the water outlet.

Distilled water storage tank capacity is 30L (WG253), 100L (WG1013), and 10L (WGS201).

The display panel indicates the replacement timing for consumables.

The drawer-type water collection stand includes a drainage function, enabling safe water collection.

Specifications

Item Code

253235

Model

WG1013

Water purifying method

Ion exchange→Distillation→Filtration

Sampled pure water method

Ion-exchanged water / distilled water

Distilled water production

Approximately 5L / h

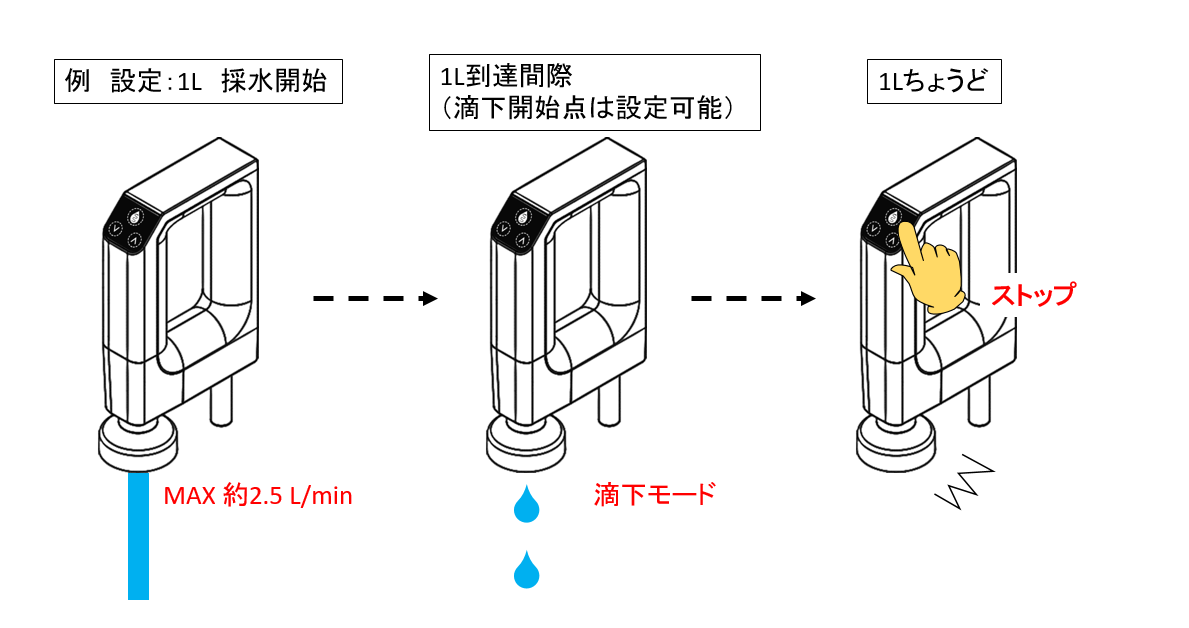

Amount of distilled water collected

~ Approximately 2.5 L / min (with variable flow rate function)

Ion-exchanged water sampling amount

Approximately 1.0 Lmin (without variable flow rate function)

Collection capacity setting range

0.01 ~ Tank water storage L / Continuous water sampling

Condenser

Hard glass

Heater

Ceramic heater 1.9kW x 2

Pretreatment cartridge

0.1 μm hollow fiber membrane + activated carbon (PWF-1)

Ion exchange resin cartridge

Two CPC-S 4L types (high-purity cartridge containing activated carbon)

Distilled water / ionized water final filtration

0.1 μm x 2 (membrane filter)

leak detection

Water supply solenoid valve forcibly shut off by water leakage detection sensor at the time of water leakage

Distilled water storage tank

100L polyethylene tank

Distilled water UV sterilization

Option

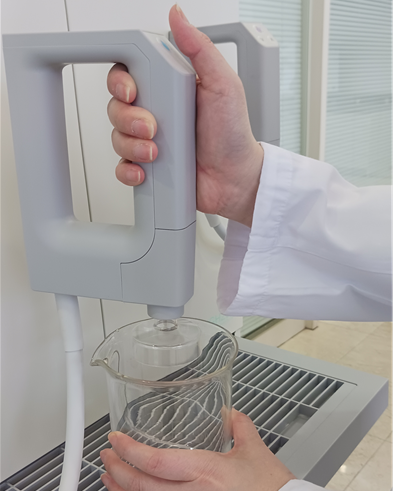

Water sampling sink

Push-open type, load capacity: 10 kg, 5 L for beaker with hand

Multipurpose distilled water sampling port

For connecting Φ8 hard tube (right side of main body)

Standard raw water pressure range

0.1-0.5 MPa

Standard Raw water requirement

Approximately 2.6 L / min

Standard ambient temperature range

5 to 35 ° C

Display / setting Water level display

Digital (7inch LCD Pannel

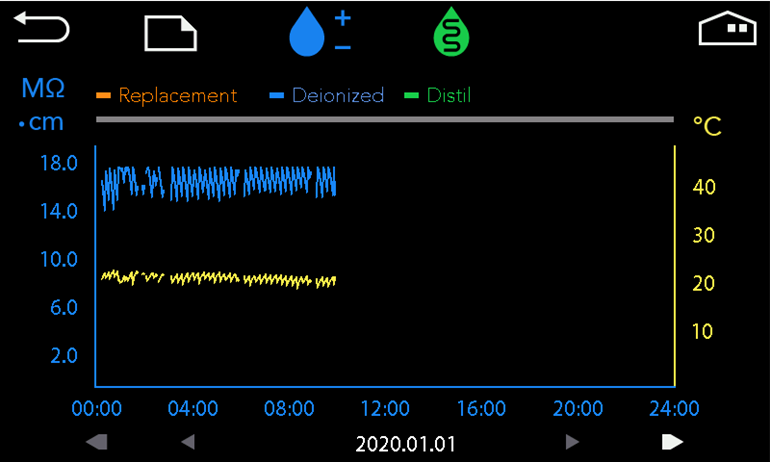

Display / setting Water quality display

Conductivity / resistivity (switchable)

Display / Settings Other displays

Notification: Consumables replacement / Periodic maintenance, Alarm: Water outage / Trend data recording impossible / Power failure / Distilled water quality deterioration, Abnormality: Controller / Water leakage / Heater overheating / disconnection / Tank water level gauge / Boiler water level, Water level gauge / Boiler drainage route / Cooling water /water supply valve/ Water quality meter / Water sampling pump, / Ion exchange water flow reduction / Water sampling route/UV lamp abnormality (option)/internal communication

Accessories

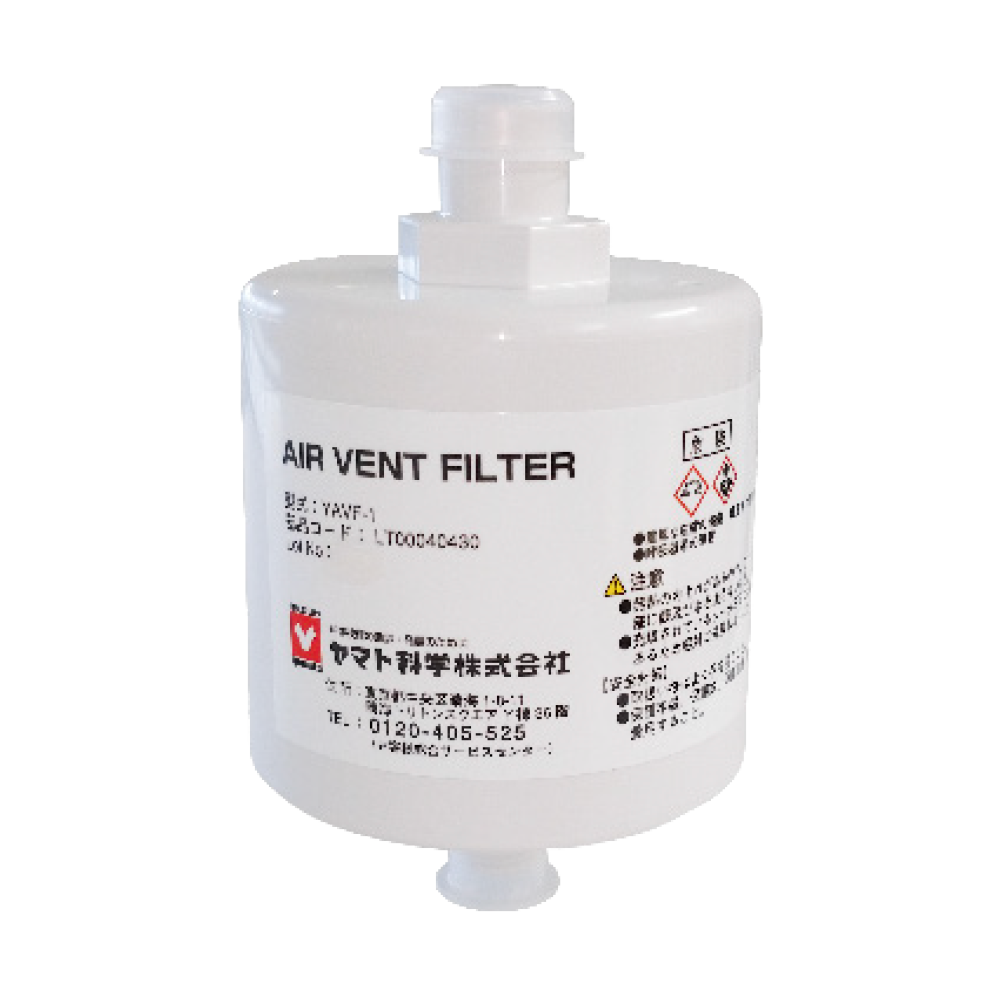

1 water supply hose (2 m), 1 water supply hose filter, 1 connection hose assembly, 1 can stone cleaner, 1 pretreatment cartridge, 1 ion exchange resin cartridge, 1 air vent filter, 2 membrane filters , 2 filter covers, 2 magnet hooks, 4 adjuster fixing brackets，1 copy each of instruction manual (operation / structure)

External dimensions（W×D×H mm）

550×570×1715mm

Power Source

AC220/230/240V, with step-down transformer

Weight

113kg
