Forced Convection Oven

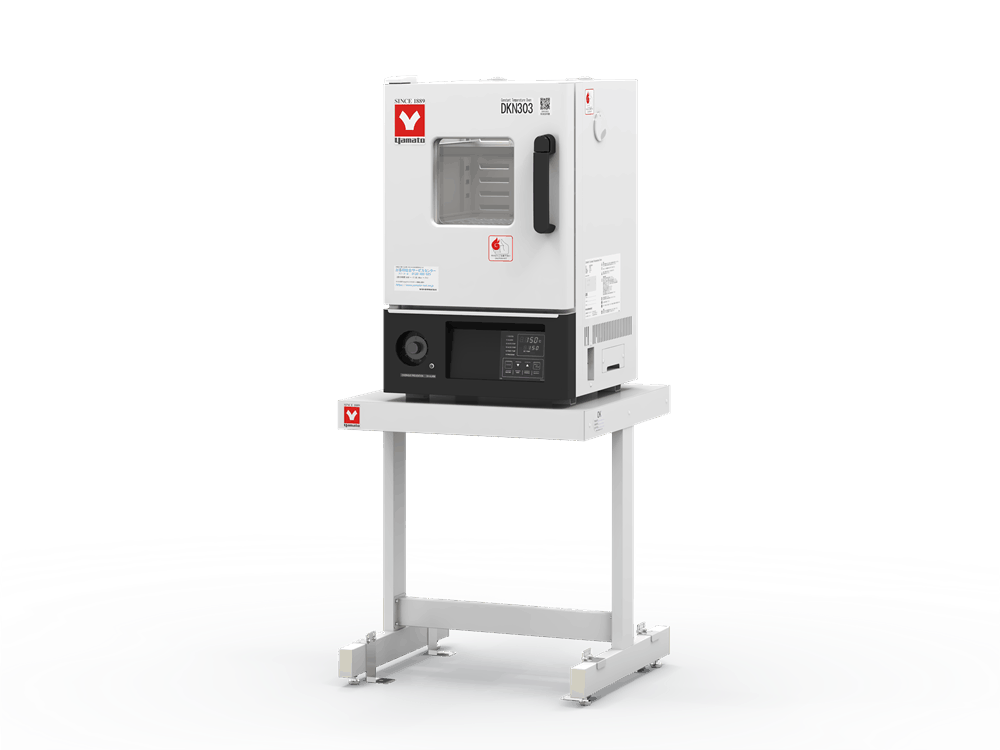

Forced Convection Oven(DKN303)

Item Code：213010

Model：DKN303

Power Source：AC100V 8.5ASingle-phase

Origin：Japan

Product Summary

Standard "Best Seller" ovens - Fully programmable

Features

Precision Temperature Control

Monotone UI Design for Intuitive Operation

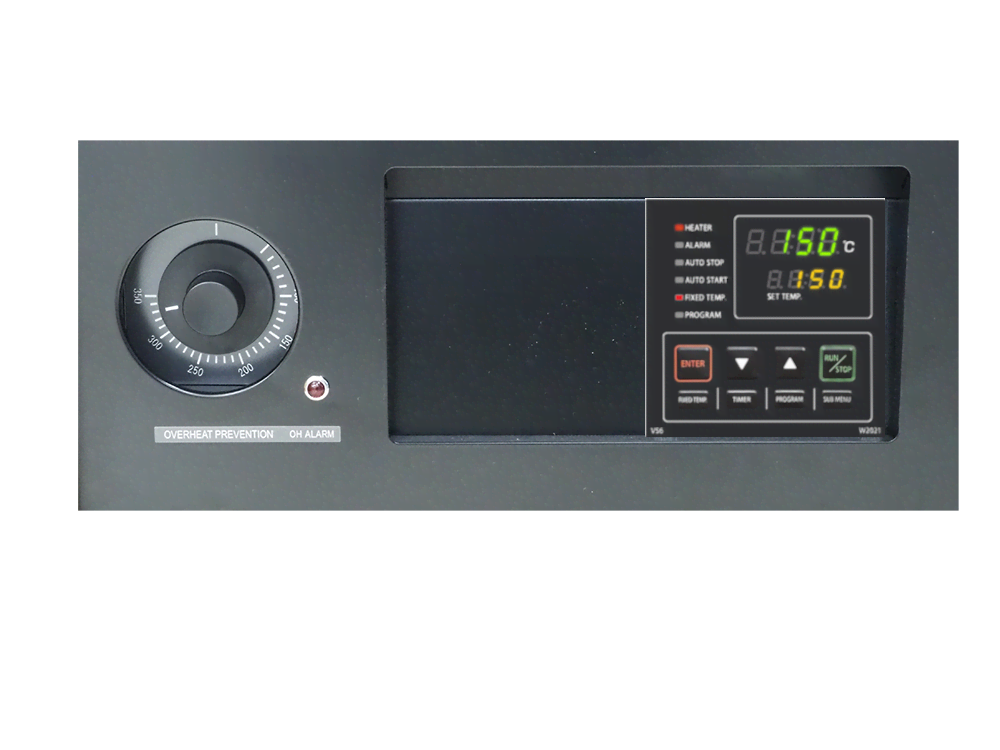

Enhanced Visibility & Usability with Next-Gen Control Panel

Forced-Air Thermostat with Simplified Workflow

Front-Accessible Overheat Protector (Independent Circuit)

Specifications

Item Code

213010

Model

DKN303

Circulation method

Forced air circulation

Operating temperature range

Room temp. 0°C~260°C

Temp. fluctuation (JIS)

±0.4℃（at 260℃）

Temp. gradient (JIS)

9℃（at 260℃）

Max. temp. reaching time

Approx. 60 min.

Interior/Exterior material

Stainless steel / Cold rolled steel plate with melamine resin baking finish

Heat insulating material

Glass wool

Heater

Stainless pipe heater

Heater

0.8kW

Fan Type / Fan Motor

Scirocco fan, Condenser type motor

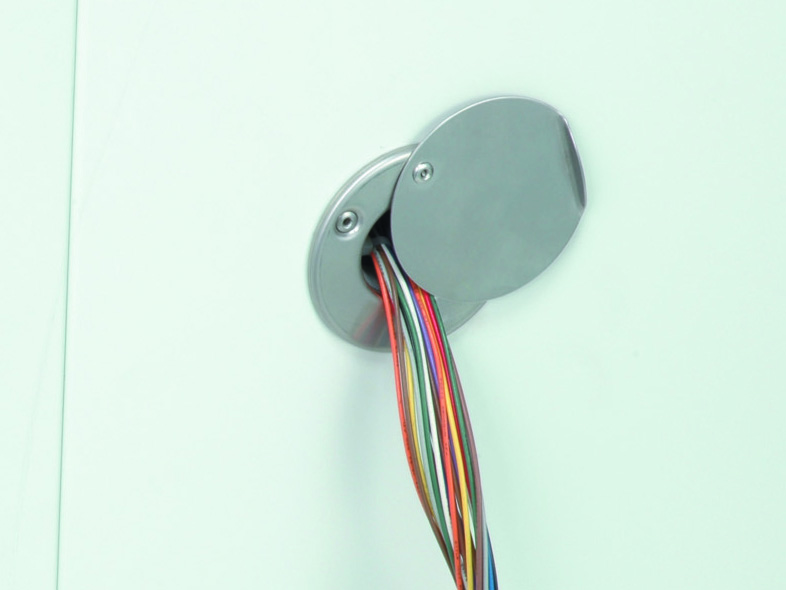

Cable hole

33mm I.D. (on the right side) 1pc.

Exhaust port

33mm I.D. x 2 (on top)

Observation window

180×180mm Chemical strengthening glass x 3

Temp. controller

PID control by microprocessor

Temp. setting method

Digital setting by UP/DOWN key

Temp. display

Measurement temp. : Digital display by green LED Setting temp. : Digital display by red LED

Timer

1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs. 50 min. with timer wait function

Operation function

Fixed temperature operation, Program operation, Auto start, Quick Auto-stop

Program mode

Program operation : 30 steps (30 steps×1, 15 steps×2, 10 steps×3) Pattern repeat function

Additional functions

Calibration off-set function, Key lock, Uninterruptible power for memory

Heater circuit control

SSR control

Sensor

K-thermocouple

Safety device

Self diagnosis functions (temp. sensor abnormal, Heater disconnection, SSR- short, Automatic overheating prevention), Key lock function, Overheat prevention, Electric leakage breaker with over current protection

Shelf plate with standard load

~15kg/piece

Shelf support step number/pitch

6 steps / 30mm

Shelf plate

Stainless steel, 1pc on the bottom screwed

Shelf plate / support

1pcs. / 2pcs.

Internal dimensions（W×D×H mm）

300×300×300mm

External dimensions（W×D×H mm）

410×451×670mm

Remarks(dimensions)

27L

Power Source

AC100V 8.5ASingle-phase

Weight

35kg

Catalog

Forced convection oven

Digest Catalog of Drying Oven

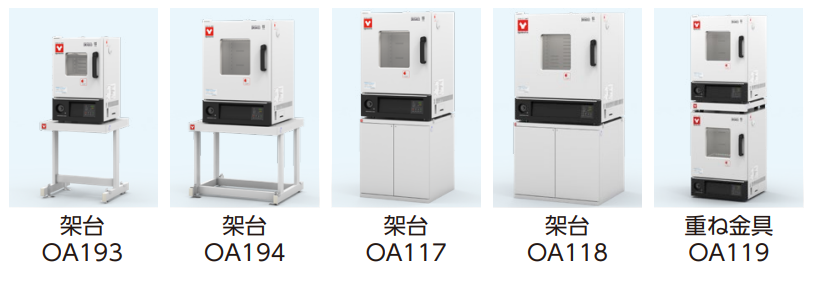

Optional Items

External Alarm Terminal(OA138)

Time-up output terminal(OA139)

Temperature output terminal(OA137)

External communication function (RS485)(OA140)
