Cooling water circulator

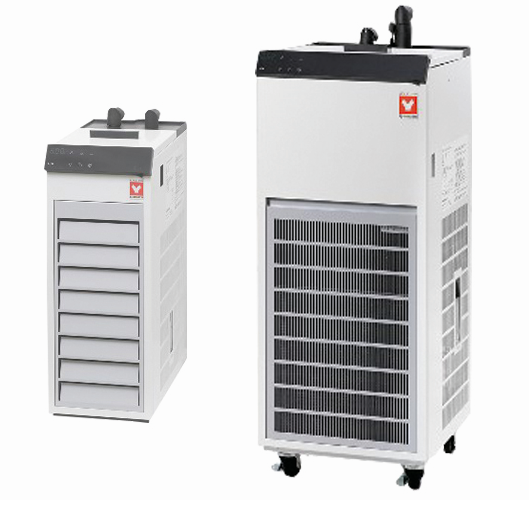

Cooling water circulator(CF720C)

Item Code：

Model：CF720C

Power Source：AC220V 5A

Origin：China

Product Summary

Low bed type external closed cooling water circulator, can be installed under the fume hood or laboratory bench.

Features

Use environmentally friendly refrigerant R404A

The operating part is digital setting and display, with atiming function

The circulation water flow adjustment valve, drainagevalve, overflow port, and power switch are all installedon the front of the body, allowing all operations are infront of the unit body

Equipped with safety designs such as overcurrentleakage protection switch, refrigeration unit overloadrelay, pump overheating protector, and a time delaytimer for refrigeration unit protection

Specifications

Model

CF720C

System

External closed circulation by circulation pump

Operating temp. range

-20℃~room temperature

Temperature control accuracy

±2℃

Cooling capacity

Approx. 880W (750Kcal/h) at liquid temp. 10℃,Approx. 680W at liquid temp. 0℃,Approx. 470W at liquid temp. -10℃

Temp. control

Refrigerator ON/OFF control

Temp. sensor

T-type thermocouple

Temp. setting, display

Digital setting, digital display

Refrigerator, refrigerant

Air-cooled sealed rotary type 600W R404A 680g

Circulation pump

Magnetic pump 127W

Pump capacity(50Hz)

Max. flow rate 30L/min

Pump capacity (50Hz)

Max. lift head 10.3m

Device circulation capacity (50Hz)

Max. flow rate 16.9

Device circulation capacity (50Hz)

Max. lift head 9.7m

Cooling pipe

Nickel-plated copper

External circulation port

Outer diameter 10.5mm pipe connector (2 each for inlet and outlet, with water valves)

Operating ambient temp. range

5~35℃

Safety device

Overcurrent leakage protection switch, refrigeration unit overload

Other functions

drainage, overflow, condenser filter, key lock function, deviation

Water bath material

Stainless steel

Water bath capacity

Approx. 16L (liquid volume 14L)

Power Source

AC220V 5A

External dimensions(W×D×H mm)

465×435×600

Weight

Approx. 60kg

Accessories

Top cover, 4×1.5m circulation hoses, 4 clamps, 1 drainage hose,1 overflow hose
