Operating temperature range
Room temp.-30~80°C
Temp. Control Accuracy
±0.1℃
Temp. distribution accuracy
±0.3℃

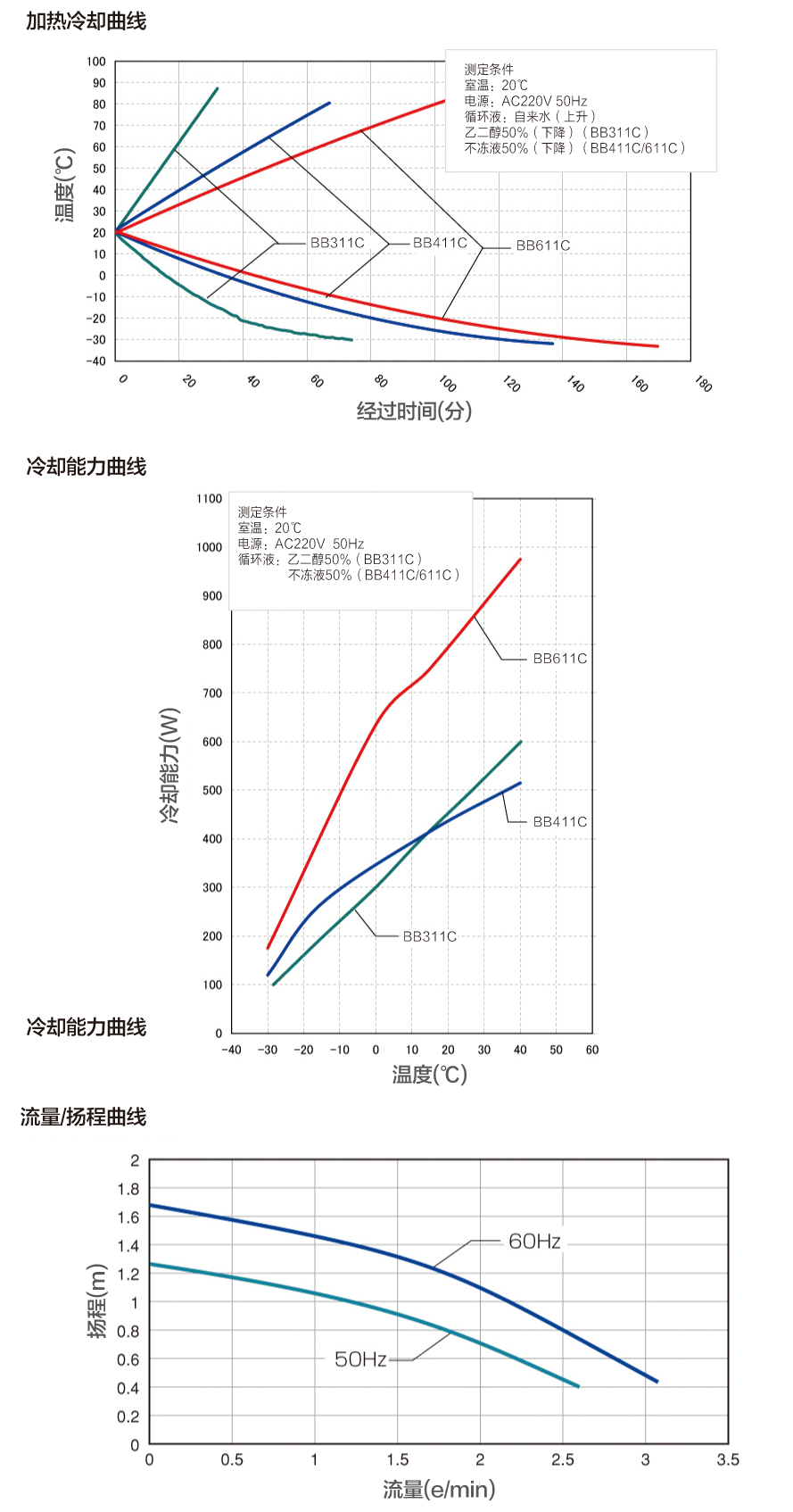

Cooling capacity
Approx. 510W (439Kcal/h), at liquid temperature 15℃
Temperature control
PID control
Operation functions
Fixed operation, automatic stop operation, automatic start operation
Temperature sensor
Temperature regulatorPt thermal resistor, for overheat protection K-type thermocouple

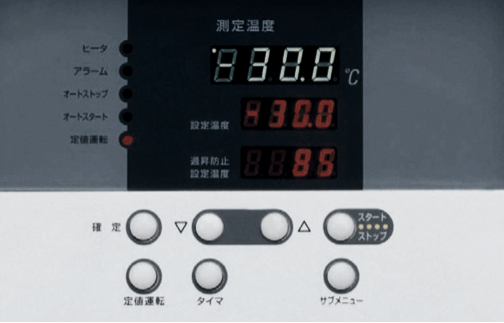

Temperature setting, display
Digital setting, digital display
Refrigerator, refrigerant
Air cooling 350W,R404A
Device circulation capacity (50/60Hz)
Maximum flow rate 2.8/3.2l/min (jet mixing)
Heater
Stainless steel heating pipe 850W
Cooling pipe
Nickel-plated copper

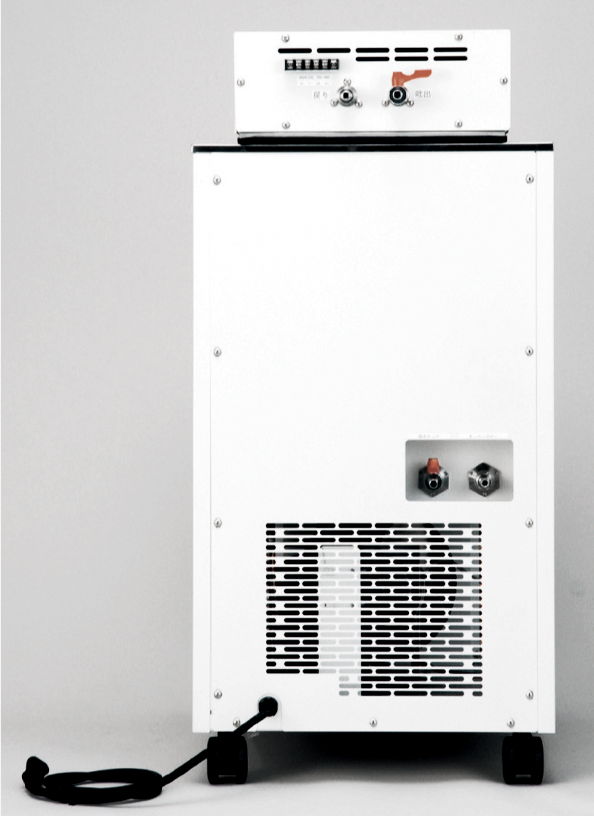

External circulation port
Both the outlet and return ports have an outer diameter of 11mm
Operating ambient temperature range
5~30℃
Safety device
Self-diagnosis function, overload protection relay for the refrigeration unit, pressure detection for the refrigeration unit, anti-dry heating float switch, delay function for refrigeration unit protection, key lock function, automatic overheating protection function, leakage protection switches for over-current, overheating protector
Internal dimensions (width × depth × height mm)
250×315×190
Effective Internal dimensions (width × depth × height mm)
220×150×160
External dimensions (width x depth x height mm)
420×550×880
